Buy Burndy YAE10N111LFBOX, 30008935 Ny Insulated Terminal, #6-8 Stud, (Pack of 50 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

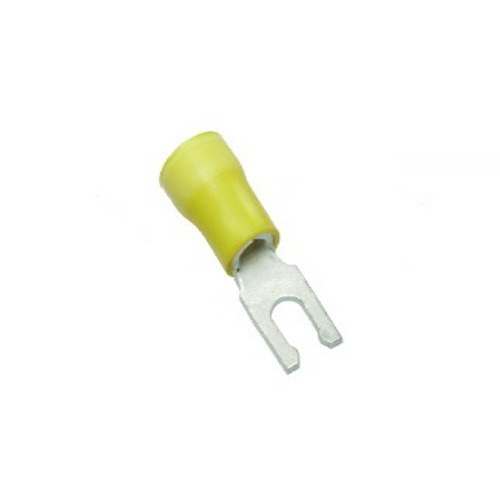

Burndy, YAE10N111LFBOX, 30008935 Nylon Insulated Terminal, #12 - #10 AWG, #6 - #8 Stud, Lock Fork Tongue

Type YAE-N-BF terminal are a block spade design featuring squared-off ends.

Features

Rapid easy installation of terminal under the screw head without complete removal of the screw
600 Volts Max.
105° C Max.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	Power Connector
Connector Type	Terminal
Insulation	Y
Insulation Type	Nylon
Item Type	3C
Material	Copper
Physical Attribute - Tongue Type	Fork
Plated	Y
Plating Type	Unplated
Trade Name	INSULUG™
Dimension - L Length Overall mm	26 mm
Dimension - Length Overall inch	1.02 in
Dimension - Pad Width inch	0.33 in
Dimension - Strip Length inch	11/32
Dimension - Stud Size fraction	#6;#8
Dimension - Stud Size inch	#6 - #8
Dimension - Z inch	0.29 in
Voltage - Maximum	600 V
Conductor - Copper Str Size Range	12 AWG - 10 AWG
Conductor Type	CU C Str-Size
Certification - CSA Approved	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Application	Power Connector
Connector Type	Terminal
Insulation	Y
Insulation Type	Nylon
Item Type	3C
Material	Copper
Physical Attribute - Tongue Type	Fork
Plated	Y
Plating Type	Unplated
Trade Name	INSULUG™
Dimension - L Length Overall mm	26 mm
Dimension - Length Overall inch	1.02 in
Dimension - Pad Width inch	0.33 in
Dimension - Strip Length inch	11/32
Dimension - Stud Size fraction	#6;#8
Dimension - Stud Size inch	#6 - #8
Dimension - Z inch	0.29 in
Voltage - Maximum	600 V
Conductor - Copper Str Size Range	12 AWG - 10 AWG
Conductor Type	CU C Str-Size
Certification - CSA Approved	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Note: Please read description carefully. Do not base your order on the picture presented.
