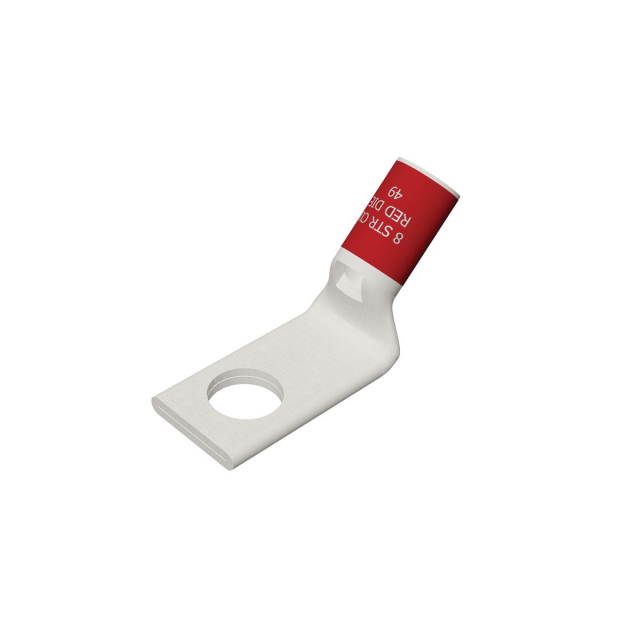

| Application | Wire Termination |
| Color Code | Red |
| Connector Type | STANDARD BARREL |
| Die Index | 49 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| Dimension - B Length fraction | 7/16 in |
| Dimension - B Length inch | 0.44 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Bolt Size inch | 0.38 |
| Dimension - D inch | 0.83 in |
| Dimension - Hole Size fraction | 3/8 |
| Dimension - Hole Size inch | 0.41 |
| Dimension - Hole Size mm | 10.4 mm |
| Dimension - L Length Overall mm | 37 mm |
| Dimension - Length Overall inch | 1.45 in |
| Dimension - N inch | 0.41 in |
| Dimension - Outside Diameter inch | 0.27 in |
| Dimension - Pad Width inch | 0.58 in |
| Dimension - Strip Length inch | 7/16 |
| Dimension - Stud Size fraction | 3/8 |
| Dimension - Stud Size inch | 3/8 |
| Dimension - Z inch | 0.42 in |
| Physical Attribute - Tongue Angle | 45 Degree |
| Rating - KVA | 35 kV |
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
| Conductor - Copper DLO Size | 8 AWG |
| Conductor - Copper DLO Size Range | N/A |
| Conductor - Copper Flex G Size | "8 AWG" |
| Conductor - Copper Flex H Size | "8 AWG" |
| Conductor - Copper Flex I Size | "8 AWG" |
| Conductor - Copper Flex K Size | "8 AWG" |
| Conductor - Copper Flex M Size | "8 AWG" |
| Conductor - Copper Solid Size | 6 Sol-8 Sol |
| Conductor - Copper Solid Size Range | 8-6 Sol |
| Conductor - Copper Str Compact Size | "8 AWG" |
| Conductor - Copper Str Navy Size | 23 |
| Conductor - Copper Str Navy Size Range | 23 (7) Navy |
| Conductor - Copper Str Size | "8 AWG" |
| Conductor - Copper Str Size Range | 8 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 8 AWG |
| Conductor Type | CODE/FLEX |
| Wire Size | 8 AWG |
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
