Buy Burndy YA6CL690, 1/2" Compression Terminal, Blue, 90 Degrees, (Pack of 25 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 25 pcs

Options and Related Products

Tongue Angle:: Tongue Angle: 90 Degrees

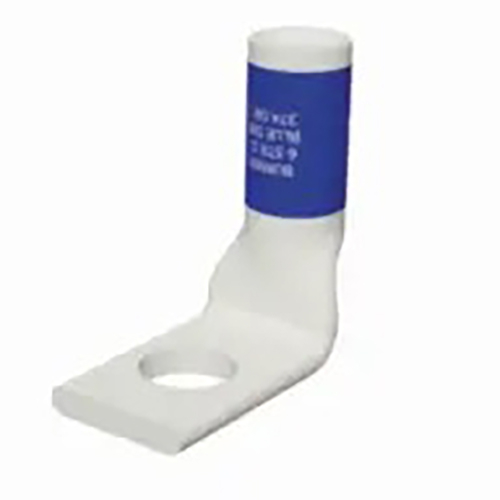

Burndy, YA6CL690, 1/2" Compression Terminal, Blue Color Code, 90 Degrees

Features:

6 AWG CU
One Hole
1/2 Stud Size
Standard Barrel
Inspection Window
Internal Chamfer
Tin Plated
UL/CSA 90° Up to 35kV
Blue Color Code
7 or 374 Die Index

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Application

Wire Termination

Color Code

Blue

Connector Type

Terminal

Die Index

7374

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Finish Type

Tin-Plated

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Standard

Plated

Plating Type

Tin - Electro Plated

Trade Name

Hylug™

Type

Standard Barrel, Tin Plated

Dimension - B Length fraction

9/16 in

Dimension - B Length inch

0.54 in

Dimension - Bolt Hole Size inch

0.52 in

Dimension - D inch

1.08 in

Dimension - Height inch

0.99 in

Dimension - Hole Size mm

13 mm

Dimension - L Length Overall mm

34 mm

Dimension - Length Overall inch

1.33 in

Dimension - N inch

0.53 in

Dimension - Outside Diameter inch

0.29 in

Dimension - Pad Width inch

0.75 in

Dimension - Strip Length inch

9/16

Dimension - Stud Size inch

1/2

Dimension - Z inch

0.55 in

Physical Attribute - Tongue Angle

90 Degree

Rating - KVA

35 kV

Voltage - Maximum

35000

Voltage Rating

35 kV

Conductor - Copper DLO Size Range

N/A

Conductor - Copper Str Size

Conductor - Copper Str Size Range

6 AWG

Conductor - Material

Copper

Certification - CSA Approved

Yes

Certification - ETL

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL 486A-486B

Standards - Industry Standards Met

UL467

Standards - RoHS Compliance Status

UL Listed

Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Application

Wire Termination

Color Code

Blue

Connector Type

Terminal

Die Index

7374

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Finish Type

Tin-Plated

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Standard

Plated

Plating Type

Tin - Electro Plated

Trade Name

Hylug™

Type

Standard Barrel, Tin Plated

Dimension - B Length fraction

9/16 in

Dimension - B Length inch

0.54 in

Dimension - Bolt Hole Size inch

0.52 in

Dimension - D inch

1.08 in

Dimension - Height inch

0.99 in

Dimension - Hole Size mm

13 mm

Dimension - L Length Overall mm

34 mm

Dimension - Length Overall inch

1.33 in

Dimension - N inch

0.53 in

Dimension - Outside Diameter inch

0.29 in

Dimension - Pad Width inch

0.75 in

Dimension - Strip Length inch

9/16

Dimension - Stud Size inch

1/2

Dimension - Z inch

0.55 in

Physical Attribute - Tongue Angle

90 Degree

Rating - KVA

35 kV

Voltage - Maximum

35000

Voltage Rating

35 kV

Conductor - Copper DLO Size Range

N/A

Conductor - Copper Str Size

Conductor - Copper Str Size Range

6 AWG

Conductor - Material

Copper

Certification - CSA Approved

Yes

Certification - ETL

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL 486A-486B

Standards - Industry Standards Met

UL467

Standards - RoHS Compliance Status

UL Listed

Yes

Note

Note: Please read description carefully. Do not base your order on the picture presented.
