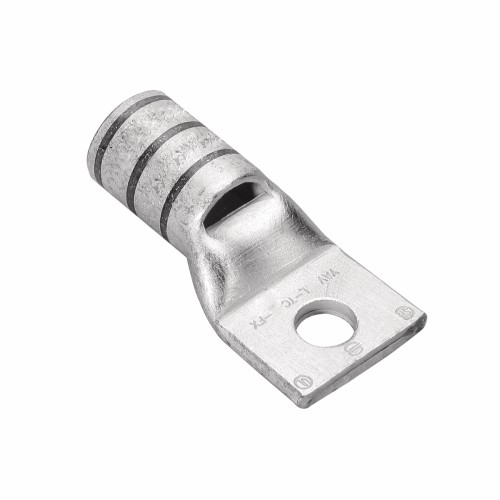

Burndy YA40LTC516FX 10015522 Hylug 650 Kcmil G One Hole, (Pack of 200 pcs)

  • Brand Burndy
  • Part # YA40LTC516FX
  • Model # 10015522
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:
Package Quantity
Pack of 200 pcs

650 kcmil G, 646 DLO CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Black Color Code, 24 Die Index.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Color CodeBlack
Connector TypeTerminal
Die Index24
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Number of Holes1
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
UPC781810316498
UPC 12 Digit7818103164988
Dimension - B Length fraction1-7/16 in
Dimension - B Length inch1.42 in
Dimension - Bolt Hole Size inch0.33 in
Dimension - Bolt Size fraction5/16
Dimension - Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm77 mm
Dimension - Length Overall inch3.05 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch1.35 in
Dimension - Pad Width inch1.98 in
Dimension - Strip Length inch1-5/16
Dimension - Stud Size inch5/16
Dimension - Thread Size5/16 in
Dimension - Z inch0.36 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size646 Kcmil
Conductor - Copper DLO Size Range646 kcmil
Conductor - Copper Flex G Size650 Kcmil
Conductor - Copper Flex G Size Range650 kcmil
Conductor - Copper Flex H Size650 Kcmil
Conductor - Copper Flex I Size650 Kcmil
Conductor - Copper Flex K Size650 Kcmil
Conductor - Copper Flex M Size650 Kcmil
Conductor - Copper Str Size400 mm2
Conductor - Copper Str Size Range650 kcmil
Conductor - MaterialCopper
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Color CodeBlack
Connector TypeTerminal
Die Index24
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Number of Holes1
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
UPC781810316498
UPC 12 Digit7818103164988
Dimension - B Length fraction1-7/16 in
Dimension - B Length inch1.42 in
Dimension - Bolt Hole Size inch0.33 in
Dimension - Bolt Size fraction5/16
Dimension - Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm77 mm
Dimension - Length Overall inch3.05 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch1.35 in
Dimension - Pad Width inch1.98 in
Dimension - Strip Length inch1-5/16
Dimension - Stud Size inch5/16
Dimension - Thread Size5/16 in
Dimension - Z inch0.36 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size646 Kcmil
Conductor - Copper DLO Size Range646 kcmil
Conductor - Copper Flex G Size650 Kcmil
Conductor - Copper Flex G Size Range650 kcmil
Conductor - Copper Flex H Size650 Kcmil
Conductor - Copper Flex I Size650 Kcmil
Conductor - Copper Flex K Size650 Kcmil
Conductor - Copper Flex M Size650 Kcmil
Conductor - Copper Str Size400 mm2
Conductor - Copper Str Size Range650 kcmil
Conductor - MaterialCopper
Note

Note: Please read description carefully. Do not base your order on the picture presented.
