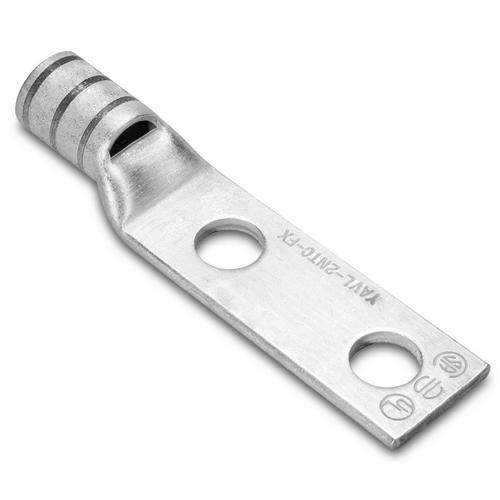

Buy Burndy YA38L2TC516FX, 510556 Lug 500 Kcmil Two Hole 5/16 Stud Size, (Pack of 25 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 25 pcs

500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, Two Hole, 5/16 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pink Color Code, L99 Die Index.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Color Code

Pink

Connector Type

Terminal

Die Index

L99

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Material

Copper

Physical Attribute - Number of Holes

Plated

Plating Type

Tin

Trade Name

HYLUG

Type

Standard Barrel, Tin Plated

UPC

781810035702

UPC 12 Digit

7818100357022

Dimension - B Length fraction

1-7/16 in

Dimension - B Length inch

1.45 in

Dimension - Bolt Hole Size inch

0.33 in

Dimension - Bolt Size fraction

5/16

Dimension - Hole Size inch

0.33 in

Dimension - Hole Size mm

8 mm

Dimension - L Length Overall mm

103 mm

Dimension - Length Overall inch

4.04 in

Dimension - N inch

0.34 in

Dimension - Outside Diameter inch

1.25 in

Dimension - Pad Width inch

1.84 in

Dimension - Strip Length inch

1-7/16

Dimension - Z inch

0.36 in

Physical Attribute - Tongue Angle

Straight

Rating - KVA

35 kV

Voltage - Maximum

35000

Conductor - Copper DLO Size

535.3 (1325/#24) DLO

Conductor - Copper DLO Size Range

535 kcmil

Conductor - Copper Flex G Size

500 kcmil

Conductor - Copper Flex G Size Range

550 kcmil

Conductor - Copper Flex H Size

500 kcmil

Conductor - Copper Flex H Size Range

500 / 550 kcmil

Conductor - Copper Flex I Size

500 kcmil

Conductor - Copper Flex I Size Range

500 / 550 kcmil

Conductor - Copper Flex K Size

500 kcmil

Conductor - Copper Flex K Size Range

500 kcmil

Conductor - Copper Flex M Size

500 kcmil

Conductor - Copper Flex M Size Range

500 kcmil

Conductor - Copper Str Size Range

500 / 550 kcmil

Conductor - Material

Copper

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Color Code

Pink

Connector Type

Terminal

Die Index

L99

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Material

Copper

Physical Attribute - Number of Holes

Plated

Plating Type

Tin

Trade Name

HYLUG

Type

Standard Barrel, Tin Plated

UPC

781810035702

UPC 12 Digit

7818100357022

Dimension - B Length fraction

1-7/16 in

Dimension - B Length inch

1.45 in

Dimension - Bolt Hole Size inch

0.33 in

Dimension - Bolt Size fraction

5/16

Dimension - Hole Size inch

0.33 in

Dimension - Hole Size mm

8 mm

Dimension - L Length Overall mm

103 mm

Dimension - Length Overall inch

4.04 in

Dimension - N inch

0.34 in

Dimension - Outside Diameter inch

1.25 in

Dimension - Pad Width inch

1.84 in

Dimension - Strip Length inch

1-7/16

Dimension - Z inch

0.36 in

Physical Attribute - Tongue Angle

Straight

Rating - KVA

35 kV

Voltage - Maximum

35000

Conductor - Copper DLO Size

535.3 (1325/#24) DLO

Conductor - Copper DLO Size Range

535 kcmil

Conductor - Copper Flex G Size

500 kcmil

Conductor - Copper Flex G Size Range

550 kcmil

Conductor - Copper Flex H Size

500 kcmil

Conductor - Copper Flex H Size Range

500 / 550 kcmil

Conductor - Copper Flex I Size

500 kcmil

Conductor - Copper Flex I Size Range

500 / 550 kcmil

Conductor - Copper Flex K Size

500 kcmil

Conductor - Copper Flex K Size Range

500 kcmil

Conductor - Copper Flex M Size

500 kcmil

Conductor - Copper Flex M Size Range

500 kcmil

Conductor - Copper Str Size Range

500 / 550 kcmil

Conductor - Material

Copper

Note

Note: Please read description carefully. Do not base your order on the picture presented.
