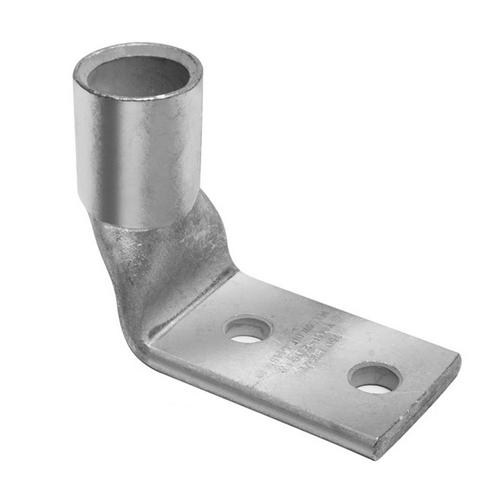

Buy Burndy YA38L2NTCFX90, 510460 Cu Tubing Hylug 500 kcmil Flex, (Pack of 10 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 10 pcs

Cu Tubing Hylug; 2 Holes with Inspection Window; 500 kcmil Flex; 600V-35kV; 1/2" stud; Standard; Compression; 0.56 in BCD; Pink.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Color Code

Pink

Connector Type

Terminal

Die Index

L99

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Standard

Plated

Plating Type

Tin

Trade Name

HYLUG

Type

Standard Barrel, Tin Plated

UPC

781810021361

UPC 12 Digit

7818100213611

Dimension - B Length fraction

1-7/16 in

Dimension - B Length inch

1.45 in

Dimension - Bolt Hole Size inch

0.52 in

Dimension - Bolt Size fraction

1/2

Dimension - Height inch

2.80 in

Dimension - Hole Size inch

0.56 in

Dimension - Hole Size mm

14 mm

Dimension - L Length Overall mm

98 mm

Dimension - Length Overall inch

3.84 in

Dimension - N inch

0.63 in

Dimension - Outside Diameter inch

1.25 in

Dimension - Pad Width inch

1.84 in

Dimension - Strip Length inch

1-7/16

Dimension - Z inch

0.65 in

Physical Attribute - Tongue Angle

90 Degree

Rating - KVA

35 kV

Voltage - Maximum

35000

Conductor - Copper DLO Size

535.3 (1325/#24) DLO

Conductor - Copper DLO Size Range

535 kcmil

Conductor - Copper Flex G Size

500 kcmil

Conductor - Copper Flex G Size Range

550 kcmil

Conductor - Copper Flex H Size

500 kcmil

Conductor - Copper Flex H Size Range

500 / 550 kcmil

Conductor - Copper Flex I Size

500 kcmil

Conductor - Copper Flex I Size Range

500 / 550 kcmil

Conductor - Copper Flex K Size

500 kcmil

Conductor - Copper Flex K Size Range

500 kcmil

Conductor - Copper Flex M Size

500 kcmil

Conductor - Copper Flex M Size Range

500 kcmil

Conductor - Copper Str Size Range

500 / 550 kcmil

Conductor - Material

Copper

Notes
