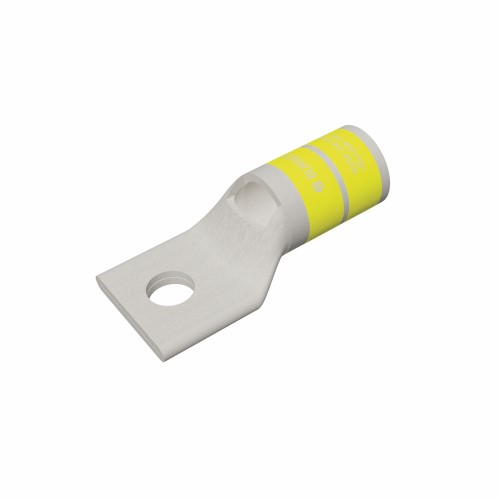

Buy Burndy YA29L, 502617 Copper Compression Terminal 250 Kcmil 1/2" Stud, (Pack of 100 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 100 pcs

Copper compression terminal,Single hole W/ insp Window,250 kcmil, 1/2" stud, Short barrel, Tin plated, Yellow, 16 index.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Color Code

Yellow

Connector Type

Terminal

Die Index

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Material

Copper

Physical Attribute - Number of Holes

Plated

Plating Type

Tin - Electro Plated

Trade Name

HYLUG

Type

Standard Barrel, Tin Plated

UPC

781810087381

Dimension - B Length fraction

1-1/16 in

Dimension - B Length inch

1.06 in

Dimension - Bolt Hole Size inch

0.52 in

Dimension - Bolt Size fraction

1/2

Dimension - D inch

1.08 in

Dimension - Hole Size mm

13 mm

Dimension - L Length Overall mm

68 mm

Dimension - Length Overall inch

2.67 in

Dimension - N inch

0.53 in

Dimension - Outside Diameter inch

0.75 in

Dimension - Pad Width inch

1.11 in

Dimension - Strip Length inch

1-1/8

Dimension - Stud Size inch

1/2

Dimension - Z inch

0.55 in

Physical Attribute - Tongue Angle

Straight

Rating - KVA

35 kV

Voltage - Maximum

35000

Conductor - Copper DLO Size Range

N/A

Conductor - Copper Str Navy Size

250 (61) Navy

Conductor - Copper Str Navy Size Range

250 (61) Navy

Conductor - Copper Str Size

250 kcmil

Conductor - Copper Str Size Range

250 kcmil

Conductor - Material

Copper

Notes

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Color Code

Yellow

Connector Type

Terminal

Die Index

Feature - Barrel Style

Chamfered
Skived

Feature - Barrel Type

Standard

Material

Copper

Physical Attribute - Number of Holes

Plated

Plating Type

Tin - Electro Plated

Trade Name

HYLUG

Type

Standard Barrel, Tin Plated

UPC

781810087381

Dimension - B Length fraction

1-1/16 in

Dimension - B Length inch

1.06 in

Dimension - Bolt Hole Size inch

0.52 in

Dimension - Bolt Size fraction

1/2

Dimension - D inch

1.08 in

Dimension - Hole Size mm

13 mm

Dimension - L Length Overall mm

68 mm

Dimension - Length Overall inch

2.67 in

Dimension - N inch

0.53 in

Dimension - Outside Diameter inch

0.75 in

Dimension - Pad Width inch

1.11 in

Dimension - Strip Length inch

1-1/8

Dimension - Stud Size inch

1/2

Dimension - Z inch

0.55 in

Physical Attribute - Tongue Angle

Straight

Rating - KVA

35 kV

Voltage - Maximum

35000

Conductor - Copper DLO Size Range

N/A

Conductor - Copper Str Navy Size

250 (61) Navy

Conductor - Copper Str Navy Size Range

250 (61) Navy

Conductor - Copper Str Size

250 kcmil

Conductor - Copper Str Size Range

250 kcmil

Conductor - Material

Copper

Note

Note: Please read description carefully. Do not base your order on the picture presented.
