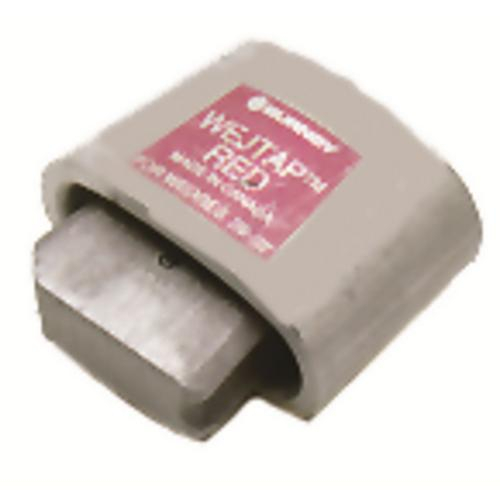

Burndy, WCR31, Wejtap Connector Assembly, 0.398 Run, 0.258 Tap

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color	Red
Connector Type	Tap
Item Type	3B
Material	Copper
Trade Name	WEJTAP
UPC	781810872109
UPC 12 Digit	7818108721099
Dimension - F Width Center to Center inch	1.40 in
Dimension - G inch	0.92 in
Conductor - ACSR Str Run	4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
Conductor - ACSR Str Run Range	4 (7/1) Swanate AWG-1/0 (6/1) Raven AWG
Conductor - ACSR Str Tap	6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
Conductor - ACSR Str Tap Range	6 (6/1) Turkey AWG-4 (7/1) Swanate AWG
Conductor - AL Str Run	2 AWG;1 AWG;1/0 AWG
Conductor - AL Str Run Range	2 AWG-1/0 AWG
Conductor - AL Str Tap	8 AWG;6 AWG;4 AWG;3 AWG
Conductor - AL Str Tap Range	8 AWG-3 AWG
Certification - CSA Approved	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Notes
