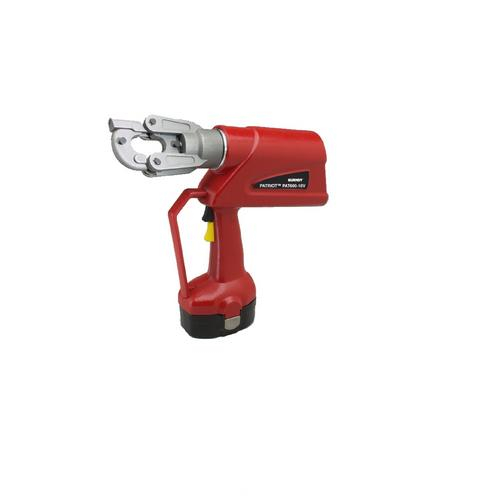

Burndy PAT600C18V Patriot 6-Ton Latch Head Crimper, Covered Head

Burndy, PAT600C18V, Patriot 6-Ton Latch Head Crimper with Covered Head

The BURNDY® PAT600-18V battery powered crimping tool provides a powerful 6 tons of crimping force and completes a crimp in approximately 3 seconds. The PAT600-18V is compact, easy to use and incorporates the latest in battery tool technology. The PAT600- 18V tool incorporates a specialized latch style head with enhanced working stroke and clearance capabilities. The specialized head allows interference-free closure on tap connections up to the BURNDY® YHD-400 size including 350 kcmil aluminum connectors. Die selection with this tool includes all BURNDY® “W” and “W-VT” style dies which seat in the permanent “D3” crimping groove. Installation applications include #8 AWG to 600 kcmil copper lugs and splices, #8 AWG to 350 kcmil aluminum lugs and splices (YA-A and YS-A), and up to 4/0 aluminum tap connections. The permanent “D3” groove and 180 degree rotatable head are standard on the PAT600-18V. Each PAT600-18V tool uses BURNDY® dies and off-the-shelf connectors available worldwide. The PAT600-18V comes equipped with a high impact formed carrying case to hold the tool, a battery charger and two batteries. The case houses up to 10 “W” dies (dies purchased separately). The PAT600-18V uses industry standard batteries and chargers.

• Battery powered crimp technology. Easy tool operation and portability.
• PAT600C-18V with covered head is available.
• Advance design high speed pump completes crimp in approximately 3 seconds. Longer life, efficiency, and reliability.
• Ergonomic design allows one hand operation for ram advance and ram retraction. User always has one hand free to manipulate connector and conductor.
• Variable speed trigger. Provides flexibility in speed of ram advance.
• Ram holds position when trigger is released. Provides ability to hold the connector between dies and check for proper alignment prior to crimping action.
• Mechanical ram release. Reliable ram release (no battery power consumption).
• Specialized latch head design. Provides enhanced clearance on tap connectors when compared with competitive designs.
