Buy Burndy PAT46T3SC05D2, PATRIOT 15-Ton Battery Crimper, C-Head

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

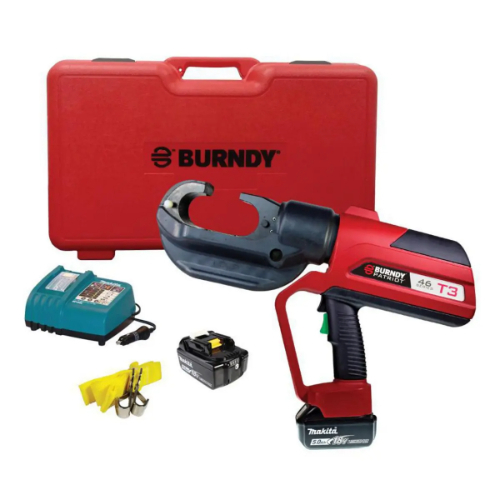

PAT46T3 Tech 15T Battery Crimper, C-Head, Rubber Covered, 5Ah Li-Ion Batteries, DC, Hard Case.

Features:

TRACK crimp locations with onboard GPS - BURNDY Exclusive!
TRACE individual crimps with comments and output force validation
TRANSMIT via Bluetooth technology and sync data to the cloud
C-head with 2" jaw opening with 355° head rotation
Uses P Dies and U Dies with PUADP1 Adapter
Bright LED worklight and Red/Green LED to validate output force
Improved ergonomic design with more balance and better grip to reduce user fatigue
Accepts 2.0Ah-6.0Ah Makita Lithium-ion Batteries

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	Crimping
Application - For Use On	Copper, Aluminum, ACSR Terminals and Splices
Battery Type	5.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Container Type	Hard Case
Crimp Force Capacity	15 ton
Die Type	P Die and U Die with PUADP1 Adapter
Power Source	12V-DC Charger
Sub Brand	PATRIOT®
Tool Type	Battery Actuated Crimper, T3 Technology
Type	Crimper
Dimensions	18.44 in x 3.26 in x 14.13 in
Height	14.13 in
Length	18.44 in
Weight	19.45 lb
Width	3.26 in
Operating Voltage	18 VDC
Crimping Ranges	Copper: #14 AWG Str. - 1500 kcmil; Aluminum: #8 AWG - 1250 kcmil; Ground Rod: 1/2"-1" diameter

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Application	Crimping
Application - For Use On	Copper, Aluminum, ACSR Terminals and Splices
Battery Type	5.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Container Type	Hard Case
Crimp Force Capacity	15 ton
Die Type	P Die and U Die with PUADP1 Adapter
Power Source	12V-DC Charger
Sub Brand	PATRIOT®
Tool Type	Battery Actuated Crimper, T3 Technology
Type	Crimper
Dimensions	18.44 in x 3.26 in x 14.13 in
Height	14.13 in
Length	18.44 in
Weight	19.45 lb
Width	3.26 in
Operating Voltage	18 VDC
Crimping Ranges	Copper: #14 AWG Str. - 1500 kcmil; Aluminum: #8 AWG - 1250 kcmil; Ground Rod: 1/2"-1" diameter

Note: Please read description carefully. Do not base your order on the picture presented.
