Buy Burndy NS1616HC, 29085H Substation Connector

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

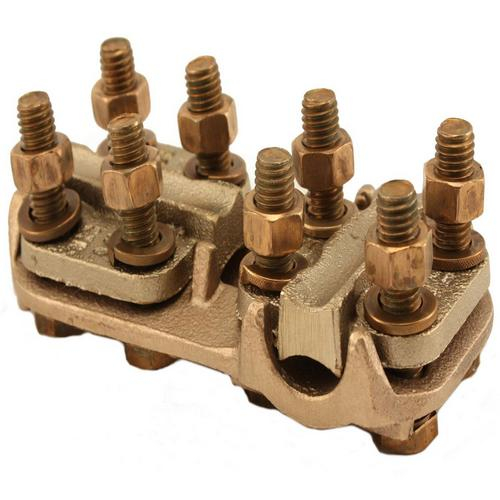

Burndy, NS1616HC, 10080984 Bolted Coupler Cast Cu Alloy, 1" IPS, Silicon Bronze H/W

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	Substation
Connector Type	Couplers
Installation Torque Recommended in-lb	480 LBS/in
Material	Copper Alloy, Cast
Material - Hardware	Silicon Bronze
One Wrench Installation	Y
Physical Attribute - Number of Run Conductors	1
Physical Attribute - Number of Tap Conductors	1
Physical Attribute - Pad Orientation	Straight
Plated	N
Plating Type	Unplated
Type	Tube to Tube Couplers
Dimension - B Length inch	2.69 in
Dimension - Height inch	2.57 in
Dimension - L Length Overall mm	146 mm
Dimension - Length BB inch	2.69 in
Dimension - Length Overall inch	5.75 in
Dimension - Width inch	3.50 in
Dimension - Width mm	89 mm
Rating - KVA	230 kV
Conductor - Connection Combination	Tube to Tube
Conductor - Copper Tube Std Run	1 1/4 IPS
Conductor - Copper Tube Std Size	1 1/4 IPS
Conductor - Copper Tube Std Size Range	1 1/4 IPS
Conductor - Copper Tube Std Tap	1 1/4 IPS
Conductor Type	CU Tube Std-Size

Notes

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Application	Substation
Connector Type	Couplers
Installation Torque Recommended in-lb	480 LBS/in
Material	Copper Alloy, Cast
Material - Hardware	Silicon Bronze
One Wrench Installation	Y
Physical Attribute - Number of Run Conductors	1
Physical Attribute - Number of Tap Conductors	1
Physical Attribute - Pad Orientation	Straight
Plated	N
Plating Type	Unplated
Type	Tube to Tube Couplers
Dimension - B Length inch	2.69 in
Dimension - Height inch	2.57 in
Dimension - L Length Overall mm	146 mm
Dimension - Length BB inch	2.69 in
Dimension - Length Overall inch	5.75 in
Dimension - Width inch	3.50 in
Dimension - Width mm	89 mm
Rating - KVA	230 kV
Conductor - Connection Combination	Tube to Tube
Conductor - Copper Tube Std Run	1 1/4 IPS
Conductor - Copper Tube Std Size	1 1/4 IPS
Conductor - Copper Tube Std Size Range	1 1/4 IPS
Conductor - Copper Tube Std Tap	1 1/4 IPS
Conductor Type	CU Tube Std-Size

Note: Please read description carefully. Do not base your order on the picture presented.
