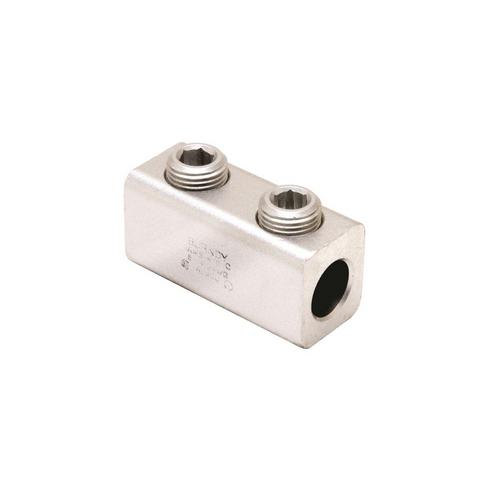

Buy Burndy AMS500S, 392070 Aluminum Splice, 3/0 AWG - 500 kcmil, (Pack of 50 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 50 pcs

Burndy, AMS500S, 392070 Aluminum Splice, 3/0 AWG - 500 kcmil

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Connector Type	Splice; Reducer
Installation Torque Recommended in - lb	375 LBS/in
Material	Aluminum
Physical Attribute - Number of Screws	4
Physical Attribute - Screw Type	Allen
Plated	Y
Plating Type	Tin
Temperature Rating	194
Dimension - L Length Overall mm	122 mm
Dimension - Length Overall inch	4.79 in
Dimension - Width inch	1.25 in
Dimension - Width mm	32 mm
Rating - Minimum Voltage	600
Conductor - AL Str Run	3/0 AWG; 4/0 AWG; 250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil; 397 kcmil; 400 kcmil; 450 kcmil; 477 kcmil; 500 kcmil
Conductor - AL Str Run Range	3/0 AWG - 500 kcmil
Conductor - AL Str Size	3/0 AWG; 4/0 AWG; 250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil; 397 kcmil; 400 kcmil; 450 kcmil; 477 kcmil; 500 kcmil
Conductor - AL Str Size Range	3/0 AWG - 500 kcmil
Conductor - AL Str Tap	3/0 AWG; 4/0 AWG; 250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil; 397 kcmil; 400 kcmil; 450 kcmil; 477 kcmil; 500 kcmil
Conductor - AL Str Tap Range	3/0 AWG - 500 kcmil
Conductor - Copper Solid Run	3/0 AWG; 4/0 AWG
Conductor - Copper Solid Run Range	3/0 AWG - 4/0 AWG
Conductor - Copper Solid Size	3/0 AWG; 4/0 AWG
Conductor - Copper Solid Size Range	3/0 AWG - 4/0 AWG
Conductor - Copper Solid Tap	3/0 AWG; 4/0 AWG
Conductor - Copper Solid Tap Range	3/0 AWG - 4/0 AWG
Conductor - Copper Str Run	3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Run Range	3/0 AWG - 500 kcmil
Conductor - Copper Str Size	3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Size Range	3/0 AWG - 500 kcmil
Conductor - Copper Str Tap	3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Tap Range	3/0 AWG - 500 kcmil
Certification - CSA Approved	Yes
Certification - ETL	No
Certification - UL Listed Direct Burial	No
Certification - UL Recognized	No
Certification - cULus	No
Industry Standard(s)	UL467
Standards - Industry Standards Met	UL467
Standards - RoHS Compliance Status	CM
UL Listed	Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Connector Type	Splice; Reducer
Installation Torque Recommended in - lb	375 LBS/in
Material	Aluminum
Physical Attribute - Number of Screws	4
Physical Attribute - Screw Type	Allen
Plated	Y
Plating Type	Tin
Temperature Rating	194
Dimension - L Length Overall mm	122 mm
Dimension - Length Overall inch	4.79 in
Dimension - Width inch	1.25 in
Dimension - Width mm	32 mm
Rating - Minimum Voltage	600
Conductor - AL Str Run	3/0 AWG; 4/0 AWG; 250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil; 397 kcmil; 400 kcmil; 450 kcmil; 477 kcmil; 500 kcmil
Conductor - AL Str Run Range	3/0 AWG - 500 kcmil
Conductor - AL Str Size	3/0 AWG; 4/0 AWG; 250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil; 397 kcmil; 400 kcmil; 450 kcmil; 477 kcmil; 500 kcmil
Conductor - AL Str Size Range	3/0 AWG - 500 kcmil
Conductor - AL Str Tap	3/0 AWG; 4/0 AWG; 250 kcmil; 266 kcmil; 300 kcmil; 336 kcmil; 350 kcmil; 397 kcmil; 400 kcmil; 450 kcmil; 477 kcmil; 500 kcmil
Conductor - AL Str Tap Range	3/0 AWG - 500 kcmil
Conductor - Copper Solid Run	3/0 AWG; 4/0 AWG
Conductor - Copper Solid Run Range	3/0 AWG - 4/0 AWG
Conductor - Copper Solid Size	3/0 AWG; 4/0 AWG
Conductor - Copper Solid Size Range	3/0 AWG - 4/0 AWG
Conductor - Copper Solid Tap	3/0 AWG; 4/0 AWG
Conductor - Copper Solid Tap Range	3/0 AWG - 4/0 AWG
Conductor - Copper Str Run	3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Run Range	3/0 AWG - 500 kcmil
Conductor - Copper Str Size	3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Size Range	3/0 AWG - 500 kcmil
Conductor - Copper Str Tap	3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil
Conductor - Copper Str Tap Range	3/0 AWG - 500 kcmil
Certification - CSA Approved	Yes
Certification - ETL	No
Certification - UL Listed Direct Burial	No
Certification - UL Recognized	No
Certification - cULus	No
Industry Standard(s)	UL467
Standards - Industry Standards Met	UL467
Standards - RoHS Compliance Status	CM
UL Listed	Yes

Note

Note: Please read description carefully. Do not base your order on the picture presented.
