Buy Burndy 1PLM35012, 10011687 Mounted Block Tap Connector, 12-Ports - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Number of Sides:: Number of Sides: 1
Wire Size:: Wire Size: #10 AWG - 350 Kcmil
Ports Qty:: Ports Qty: 12

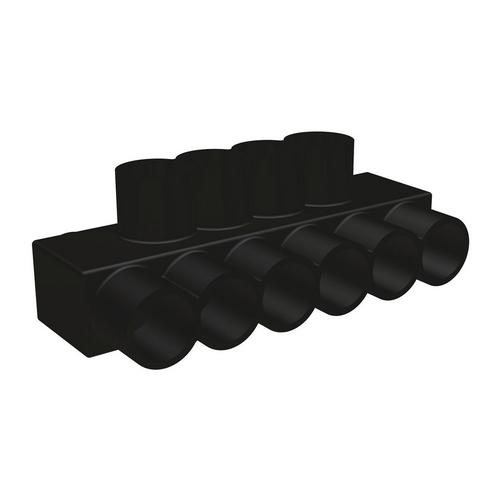

Burndy, 1PLM35012, Mounted Block Tap Connector, 12-Ports, 1 Sided Entry, #10 AWG - 350 Kcmil

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Conductor(s)
Aluminum Size (Range)	8 AWG-350 kcmil
Copper Stranded (Range)	10 AWG-350 kcmil
Physical
Type of Plating	Unplated
Plated (Yes or No)	N
Product Material	Aluminum
Dimensional
Width (in)	2.32
Length (in)	13.14
Height (in)	2.63
Approvals
Rated for Direct Burial	N
UL Listed	Y
CSA Certified	Y
ROHS Compatible	Compliant
UL Recognized	N
CULUS	N

Product Details

Conductor(s)
Aluminum Size (Range)	8 AWG-350 kcmil
Copper Stranded (Range)	10 AWG-350 kcmil
Physical
Type of Plating	Unplated
Plated (Yes or No)	N
Product Material	Aluminum
Dimensional
Width (in)	2.32
Length (in)	13.14
Height (in)	2.63
Approvals
Rated for Direct Burial	N
UL Listed	Y
CSA Certified	Y
ROHS Compatible	Compliant
UL Recognized	N
CULUS	N
