Options and Related Products

Thickness (in):: Thickness (in): 0.0031
Label/Tape Size (in):: Label/Tape Size (in): 0.2 x 0.5

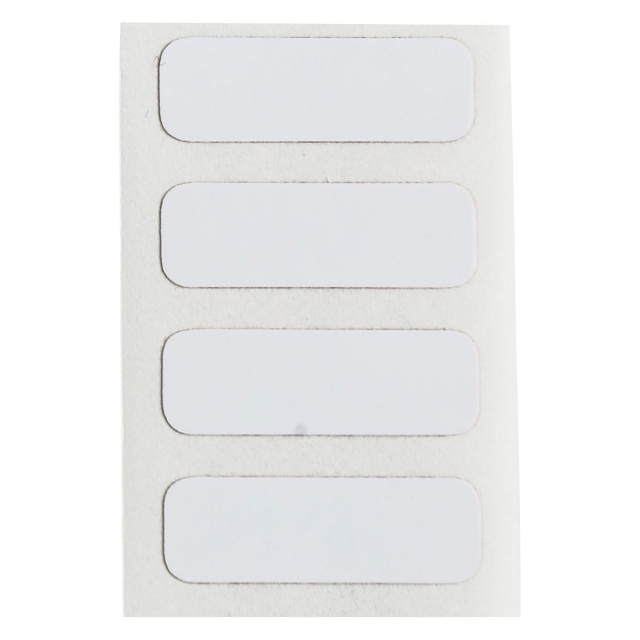

Brady, THT-97-768-10, Non-Reflow and Reflow 0.2" x 0.5" Ultra-Thin ESD 1 mil Polyimide Circuit Board Label for 3" Core Printers

Features:

Low-profile, high-temperature, glossy white polyimide material features a static dissipative adhesive and static dissipative release liner
Surface resistivity values in the recommended range for dissipative ESD packaging materials as defined by ANSI/ESD S541-2008
UL approved and meets requirements of MIL-STD-202G, Method 215K
Service temperature of -94° to 212°F (-70° to 100°C)

Applications:

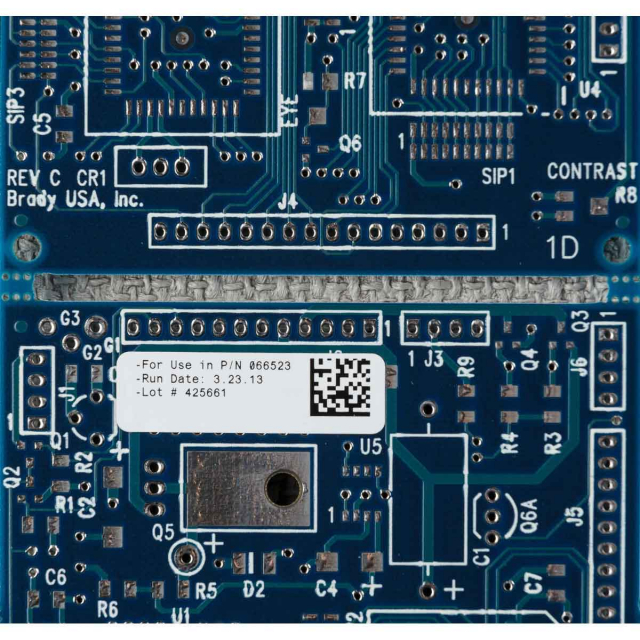

Circuit Board Labeling
Component and Equipment Labeling

Static dissipative polyimide labels withstand wave solder environments and multiple harsh washes for printed circuit board and electronic component preprocess labeling.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Quantity per Row	1
Shape	Rectangle
Average Outdoor Durability	Not Recommended
Corner Type	Rounded
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Core Diameter	3 in

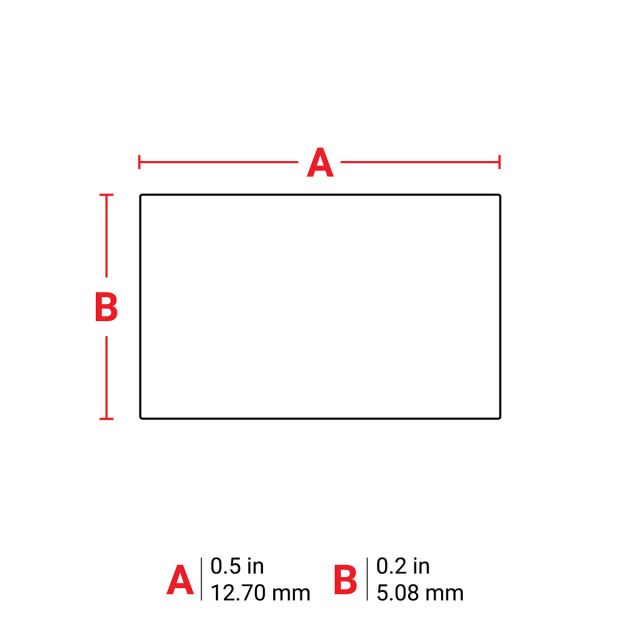

Dimensions	0.2 in H x 0.5 in W
Label/Tape Size	0.2 in H x 0.5 in W
Height	0.2 in
Vertical Repeat	0.3 in
Web Width	0.7 in
Width	0.5 in
Thickness	3.1 mil
Country of Origin	United States of America
Quantity per Roll	10000
Print Technology	Thermal Transfer
Material	Static Dissipative Polyimide
Compatible Surface Types	High Surface Energy
Label Properties	Electrostatic Dissipative, Heat Resistant, Permanent Adhesive
Material Properties	Harsh Flux Wash-resistant
Resistance Properties	Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant
Material Number	B-768
Adhesive Type	Static Dissipative Permanent Acrylic
Finish	Gloss
Color	White
Indoor or Outdoor Use	Indoor Use
Service Temperature Range °F	-112 °F - 572 °F
Printer Compatibility	A8500, BBP12, BBP81, i5100, i7100, IP Series, PR Plus, THT 3
Recommended Ribbon	IP-R6306, R6306

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Quantity per Row	1
Shape	Rectangle
Average Outdoor Durability	Not Recommended
Corner Type	Rounded
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Core Diameter	3 in
Dimensions	0.2 in H x 0.5 in W
Label/Tape Size	0.2 in H x 0.5 in W
Height	0.2 in
Vertical Repeat	0.3 in
Web Width	0.7 in
Width	0.5 in
Thickness	3.1 mil
Country of Origin	United States of America
Quantity per Roll	10000
Print Technology	Thermal Transfer
Material	Static Dissipative Polyimide
Compatible Surface Types	High Surface Energy
Label Properties	Electrostatic Dissipative, Heat Resistant, Permanent Adhesive
Material Properties	Harsh Flux Wash-resistant
Resistance Properties	Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant
Material Number	B-768
Adhesive Type	Static Dissipative Permanent Acrylic
Finish	Gloss
Color	White
Indoor or Outdoor Use	Indoor Use
Service Temperature Range °F	-112 °F - 572 °F
Printer Compatibility	A8500, BBP12, BBP81, i5100, i7100, IP Series, PR Plus, THT 3
Recommended Ribbon	IP-R6306, R6306

Note

Note: Please read description carefully. Do not base your order on the picture presented.
