Buy Brady THT-71-797-20, Non-Reflow 0.315" x 0.315" Circuit Board Label

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Thickness (in):: Thickness (in): 0.0044
Label/Tape Size (in):: Label/Tape Size (in): 0.315 x 0.315

Brady, THT-71-797-20, Non-Reflow and Reflow 0.315" x 0.315" High Temperature Glossy 2 mil Polyimide Circuit Board Label for Small Core Printers

Features:

Ultra-durable adhesive is built for extreme washes and cleaning chemicals
Enhanced topcoat is ideal for boards that go through multiple harsh-condition washes
Labels do not require reflow or preheatings to ensure printing readability
Smear-resistant, glossy white polyimide material is thermal transfer printable
UL approved and meets requirements of MIL-STD-202G, Method 215K
Service temperature of -94° to 212°F (-70° to 100°C)
For material specific performance and properties, please refer to the Technical Data Sheet (TDS)

Applications:

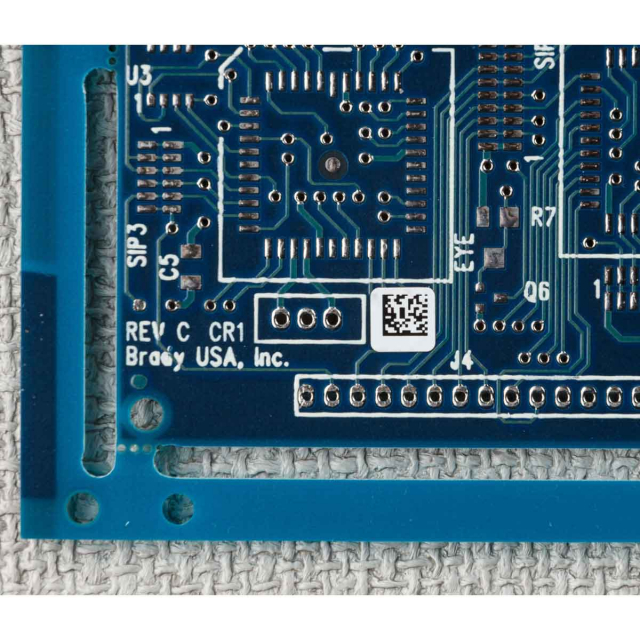

Circuit Board Labeling
Component and Equipment Labeling

For PCB and electronic component manufacturing, get labels that are engineered to survive extreme processes like wave soldering and multiple harsh washes.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Quantity per Row	6
Shape	Square
Average Outdoor Durability	Not Recommended
Corner Type	Rounded
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Core Diameter	3 in

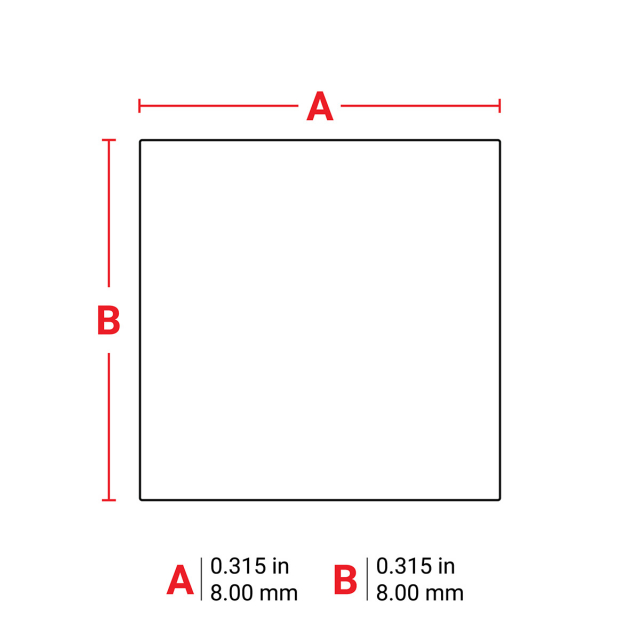

Label/Tape Size	0.315 in H x 0.315 in W
Horizontal Repeat	0.375 in
Vertical Repeat	0.45 in
Web Width	2.39 in
Thickness	0.0044 in
Country of Origin	United States of America
Quantity per Roll	20000
Print Technology	Thermal Transfer
Indoor or Outdoor Use	Indoor Use
Service Temperature Range °F	-94 °F - 572 °F
Finish	Gloss
Adhesive Type	Permanent Acrylic
Material	Polyimide
Color	White
Material Number	B-797
Compatible Surface Types	High Surface Energy
Label Properties	Heat Resistant, Permanent Adhesive
Material Properties	Harsh Wash-resistant, Solvent-resistant
Resistance Properties	Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Heat-resistant, Humidity-resistant
Printer Compatibility	A8500, BBP12, BBP81, i5100, i7100, IP Series, PR Plus, THT 3
Recommended Ribbon	IP-R6302, R6302

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Quantity per Row	6
Shape	Square
Average Outdoor Durability	Not Recommended
Corner Type	Rounded
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Core Diameter	3 in
Label/Tape Size	0.315 in H x 0.315 in W
Horizontal Repeat	0.375 in
Vertical Repeat	0.45 in
Web Width	2.39 in
Thickness	0.0044 in
Country of Origin	United States of America
Quantity per Roll	20000
Print Technology	Thermal Transfer
Indoor or Outdoor Use	Indoor Use
Service Temperature Range °F	-94 °F - 572 °F
Finish	Gloss
Adhesive Type	Permanent Acrylic
Material	Polyimide
Color	White
Material Number	B-797
Compatible Surface Types	High Surface Energy
Label Properties	Heat Resistant, Permanent Adhesive
Material Properties	Harsh Wash-resistant, Solvent-resistant
Resistance Properties	Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Heat-resistant, Humidity-resistant
Printer Compatibility	A8500, BBP12, BBP81, i5100, i7100, IP Series, PR Plus, THT 3
Recommended Ribbon	IP-R6302, R6302

Note

Note: Please read description carefully. Do not base your order on the picture presented.
