Buy Brady THT-14-767-10, Non-Reflow 0.2" x 0.65" Circuit Board Label

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Thickness (in):: Thickness (in): 0.0041
Label/Tape Size (in):: Label/Tape Size (in): 0.2 x 0.65
Number of Rows:: Number of Rows: 3

Brady, THT-14-767-10, Non-Reflow and Reflow 0.2" x 0.65" ESD 2 mil Polyimide Circuit Board Label for 3" Core Printers

Features:

Engineered to withstand high temperatures
Low profile, glossy white polyimide material features a static dissipative adhesive and liner
Enhanced topcoat is ideal for boards that go through multiple harsh-condition washes
Labels do not require reflow or preheatings to ensure printing readability
Surface resistivity meets ANSI/ESD S541-2008 recommended range for dissipative ESD packaging materials
UL approved and meets requirements of MIL-STD-202G, Method 215K
Service temperature of -94° to 212°F (-70° to 100°C)

Applications:

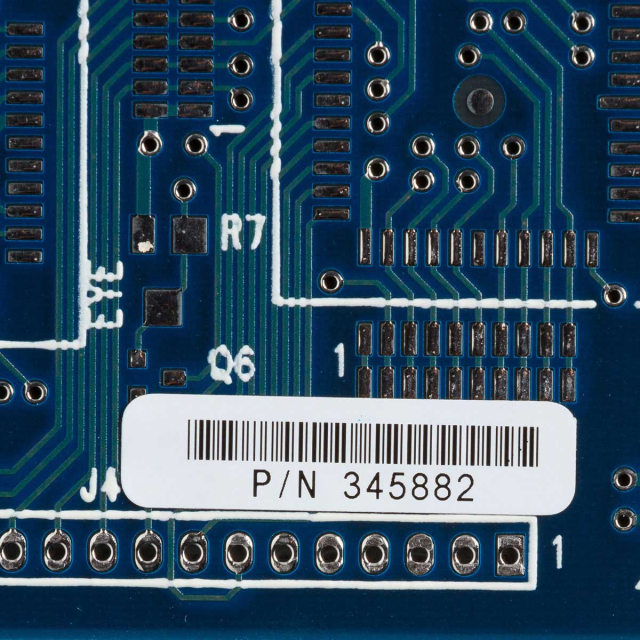

Circuit Board Labeling
Component and Equipment Labeling

Ideal for PCB and electronic component manufacturing, these labels are static dissipative and survive extreme processes like wave soldering and multiple harsh washes.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Corner Type	Rounded
Quantity per Row	4
Shape	Rectangle
Average Outdoor Durability	Not Recommended
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Width	0.65 in
Core Diameter	3 in

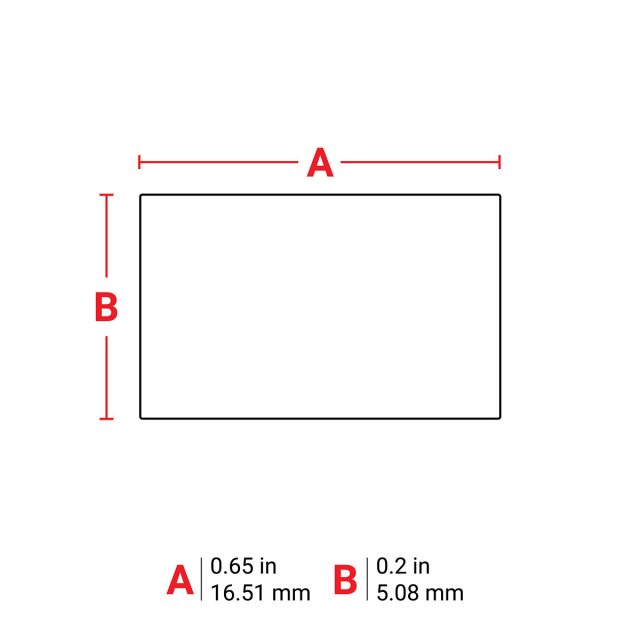

Label/Tape Size	0.2 in H x 0.65 in W
Horizontal Repeat	0.7 in
Thickness	4.1 mil
Vertical Repeat	0.3 in
Web Width	2.95 in
Quantity per Roll	10000
Country of Origin	United States of America
Print Technology	Thermal Transfer
Material Number	B-767
Material	Static Dissipative Polyimide
Indoor or Outdoor Use	Indoor Use
Compatible Surface Types	High Surface Energy
Service Temperature Range °F	-112 °F - 572 °F
Adhesive Type	Static Dissipative Permanent Acrylic
Finish	Gloss
Color	White
Label Properties	Electrostatic Dissipative, Heat Resistant, Permanent Adhesive
Material Properties	Harsh Flux Wash-resistant
Resistance Properties	Abrasion-resistant, Chemical-resistant, Fluid-resistant, High Temperature-resistant, Humidity-resistant, Low Temperature-resistant
Printer Compatibility	A8500, BBP12, BBP81, i5100, i7100, IP Series, PR Plus, THT 3
Recommended Ribbon	IP-R6302, R6302
