Options and Related Products

Package Includes:: Package Includes: RS-232 6.6' (2m) Coiled Cable and AC Adaptor

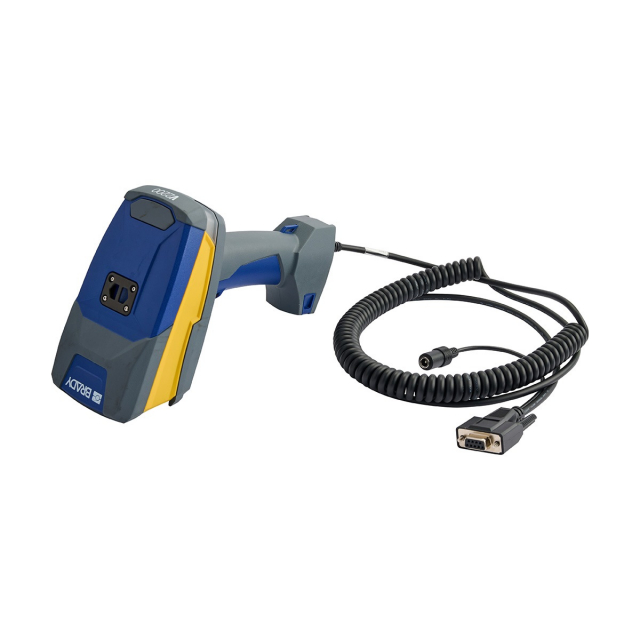

Brady, 178570, V2200 Industrial Wired Barcode Scanner, RS-232 6.6' (2m) Coiled Cable and AC Adaptor

178570 Includes Only:

(1) V2200 Wired Barcode Scanner
(1) RS-232 2m St Cable (178576)
(1) AC Adaptor - US

Features:

Delivers consistent, accurate results for any task or skill level, from high-volume warehouse operations to simple data entry
Cortex Decoder technology allows scanner to easily read tiny barcodes as well as shiny and hard-to-read surfaces
Patented dual-field optics, both high density and wide field, enable scanning of a wide range of barcodes
Reliable wired connection ensures continuous operation
Rugged design survives 8-foot drops, harsh environments (IP65 rated) and 250 lbs. of crush force
JavaScript platform provides unlimited customization options to meet your application needs
Data parsing sorts and arranges data for your systems to simplify data entry and improve reporting
Cable can be removed and interchanged for different connection needs

Simplify tasks, reduce errors and program to fit only the functions you need with the rugged, reliable V2200 Wired Barcode Scanner.

Perfect for industrial stationary work spaces - Survives multiple 8-foot drops and is water-resistant per IP65
Designed to match your workflow with USB-A, USB-C or RS-232 connections and straight or longer, coiled cables
Easy to set up and customize - Get up and running quickly with simple configuration tool and helpful tech support

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Dimensions	7.795 in H x 3.386 in W x 5.984 in D
Cable Length	9.84 ft
Weight	1.44 lb
Color	Blue, Gray, Yellow
Application	Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, General Identification, Inventory and Inspection Labeling, Warehouse Marking
Shipped With Battery	No
Connectivity Options	RS232, Serial RS232
Device Drop Test & Durability	Resistant to 250-lb crushes, Resistant to 8-foot drops, Resistant to military-grade shocks (MIL-STD-810G)
Plug Type	US
Power Supply Voltage	100 - 240 V at 50 - 60 Hz
Scanner Model	V2200
Portability	Portable
Wireless or Wired	Wired
Rotational Tolerance	=+/- 180°
Sensor	CMOS 1.2 Megapixel
Field of View	High Density Field: 30° Horizontal by 20° Vertical, Wide Field: 50° Horizontal by 33.5° Vertical
Focal Point	Approximately 100 mm
Illumination - Light Source	Red LEDs (640 mm)
Power Requirements	10W
Number of Scans	Up to 75,000 scans per charge
Optical Resolution	High Density Field: 960 x 640, Wide Field: 960 x 640
Pitch	± 65° (from front to back)
Skew	± 60° from plane parallel to symbol (side-to-side)
Target Beam	Single Blue targeting bar (470nm)
Type	RS-232, 6.6' (2m) Coiled Cable
Image Output Options	JPEG, PGM
1D / 2D Barcode Capability	1D, 2D
Decode Capability - 1D Stacked	Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417
Decode Capability - 1D	BC412, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN
Decode Capability - 2D	Aztec Code, Data Matrix, Data Matrix Rectangular Ext'n, GoCode® (proprietary - add'l license req'd), Grid Matrix, HanXin Code, Micro QR Code, QR Code, QR Model 1
Decode Capability - Postal	Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-Net, UK Royal Mail, UPU ID-tags
Field Selection	High Density or Wide Field
Advanced Data Editing	JavaScript
Symbol Contrast	15% minimum reflectance difference
Ambient Light Immunity	Sunlight: Up to 9,000ft-candles/96,890 lux
Charging Station w/BT Radio Communication Interfaces for Barcode Scanners	RS232, USB 2.0 (generic HID, HID keyboard, virtual com port)
Data Parsing	Driver's licenses and ID Cards (optional license required), GS1, HIBC
Data Structure Validation	HIBC UDI, ISO 15418, ISO 15434
