Buy Brady BM7C-187-342, PermaSleeve Wire and Cable Label Tape, 0.187"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Sleeve Diameter (in):: Sleeve Diameter (in): 0.187

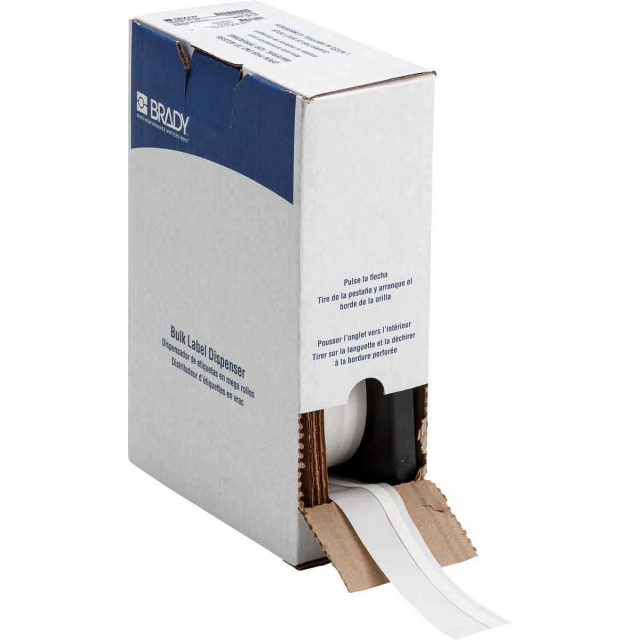

Brady Corporation, BM7C-187-342, PermaSleeve Heat Shrink Wire and Cable Label Tape for M7 Printers, 0.187" Dia x 50', White

Features:

Industrial Grade - Extreme temperature resistance, UV resistant, Chemical resistant, Fuel and Oil resistant, Self-extinguishing
Superior Aesthetics - Crisp, clear identification resistant to abrasions and fading
Certifications - UL Recognized to UL 224, RoHS Compliant to 2011/65/EU (Pass 2015/863), SAE AS23053/5 (Class 1), SAE AS-81531, MIL-STD-202
3:1 heat shrink labels fit snugly around wires for maximum insulation protection and permanent identification
For material-specific performance and properties, please refer to the Technical Data Sheet (TDS)
Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
A ribbon is required to print this material. Use Part Number M7-R6600

Designed for rigorous wire marking applications, PermaSleeve& #174; Heat Shrink Polyolefin (B-342) labels combine speed, ease of use, and permanence to create high quality labeling.

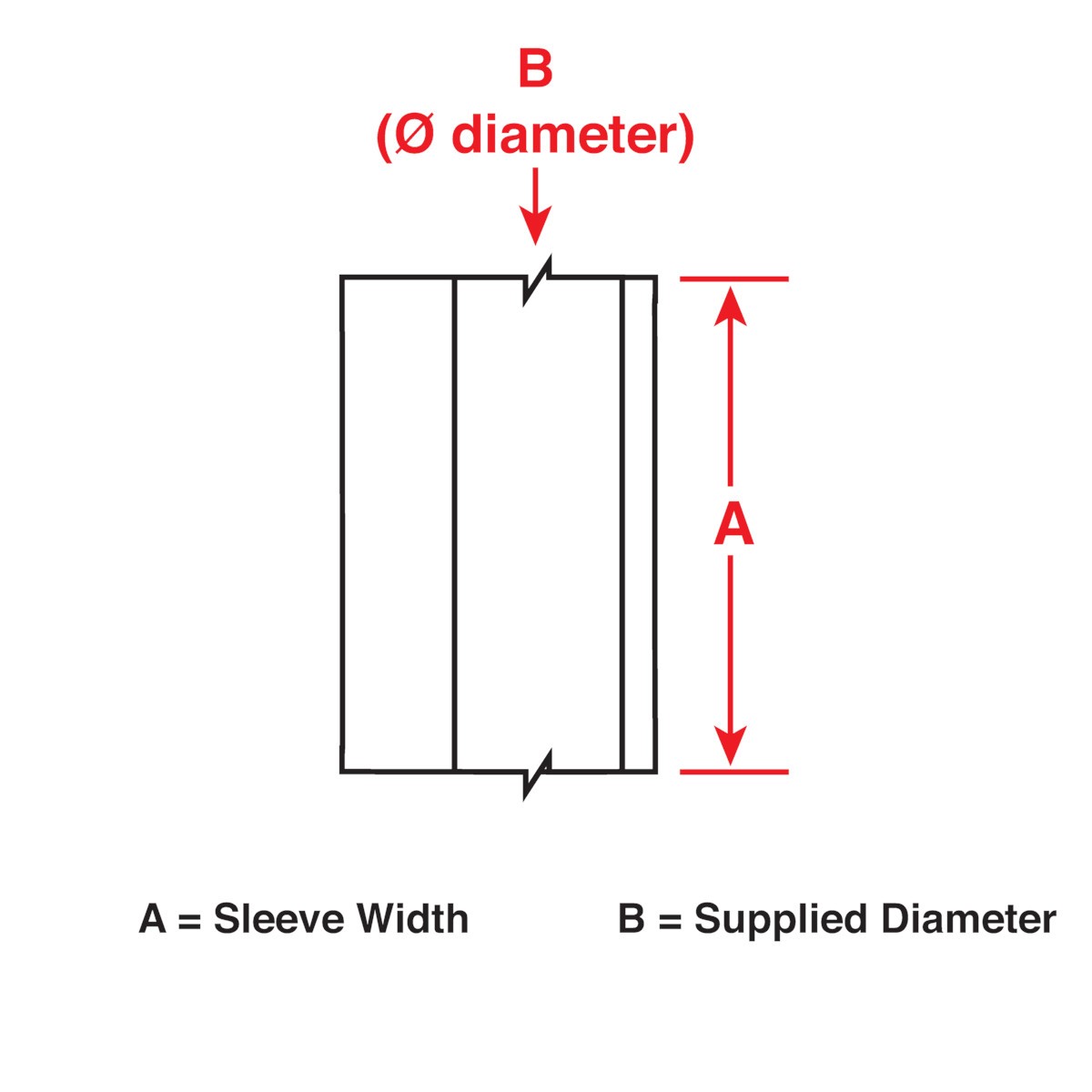

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Dimensions	0.335 in H
Height	0.335 in
Roll Length	50 ft
Sleeve Size	0.187 in Dia x 50 ft L
Recovered Diameter	0.062 in
Recovered Wall Thickness	0.02 in
Diameter as Supplied	0.187 in
Material Number	B-342
Material	Heat-shrink Polyolefin
Material Properties	Flame-retardant, Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	White
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Shrink Ratio	3:1
Service Temperature Range ° F	-67 ° F - 275 ° F
Minimum Service Temperature ° F	-67 ° F
Maximum Service Temperature ° F	275 ° F
Application	Electrical Labeling, Wire and Cable Labeling
Printable Sides	Single-Side Printable
Print Technology	Thermal Transfer
Printer Compatibility	BMP71, M710
Recommended Ribbon	M7-R6600
Wire Diameter Range	0.062 into 0.15 in
Wire Gauge Range	20 AWG - 10 AWG

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer www.P65Warnings.ca.gov

Product Details

Dimensions	0.335 in H
Height	0.335 in
Roll Length	50 ft
Sleeve Size	0.187 in Dia x 50 ft L
Recovered Diameter	0.062 in
Recovered Wall Thickness	0.02 in
Diameter as Supplied	0.187 in
Material Number	B-342
Material	Heat-shrink Polyolefin
Material Properties	Flame-retardant, Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	White
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Shrink Ratio	3:1
Service Temperature Range ° F	-67 ° F - 275 ° F
Minimum Service Temperature ° F	-67 ° F
Maximum Service Temperature ° F	275 ° F
Application	Electrical Labeling, Wire and Cable Labeling
Printable Sides	Single-Side Printable
Print Technology	Thermal Transfer
Printer Compatibility	BMP71, M710
Recommended Ribbon	M7-R6600
Wire Diameter Range	0.062 into 0.15 in
Wire Gauge Range	20 AWG - 10 AWG

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
