Buy Brady BM-375-1-342, PermaSleeve Wire and Cable Label Tape, 0.375"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Sleeve Diameter (in):: Sleeve Diameter (in): 0.375

Brady Corporation, BM-375-1-342, PermaSleeve Heat Shrink Wire and Cable Label for M6 / M7 Printers, 0.375" Dia x 1", White

Features:

Industrial Grade - Extreme temperature resistance, UV resistant, Chemical resistant, Fuel and Oil resistant, Self-extinguishing
Superior Aesthetics - Crisp, clear identification resistant to abrasions and fading
Certifications - UL Recognized to UL 224, RoHS Compliant to 2011/65/EU (Pass 2015/863), SAE AS23053/5 (Class 1), SAE AS-81531, MIL-STD-202
3:1 heat shrink labels fit snugly around wires for maximum insulation protection and permanent identification
For material specific performance and properties, please refer to the Technical Data Sheet (TDS)
Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
A ribbon is required to print this material. Use Part Number M61-R4310for the M610 / BMP61 / BradyPrinter M611 / M611 Label Printers or M7-R6600 for the M710 / BMP71 Label Printers

Designed for rigorous wire marking applications, PermaSleeve& #174; Heat Shrink Polyolefin (B-342) labels combine speed, ease of use, and permanence to create high quality labeling.

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

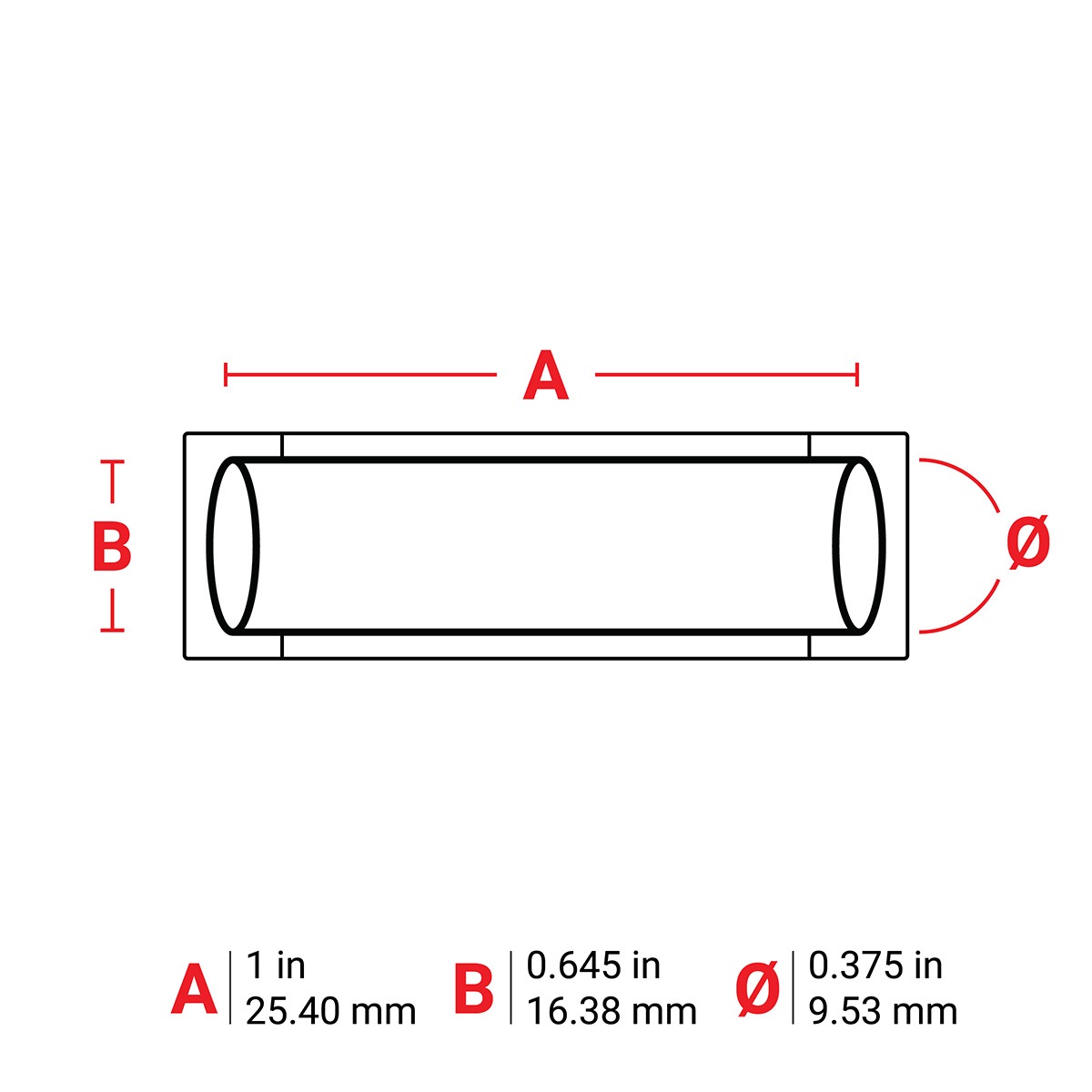

Dimensions	0.645 in H x 1 in W
Roll Width	1 in
Sleeve Size	0.375 in Dia x 1 in W
Vertical Repeat	1 in
Recovered Diameter	0.125 in
Recovered Wall Thickness	0.025 in
Web Width	1.812 in
Diameter as Supplied	0.375 in
Material Number	B-342
Material	Heat-shrink Polyolefin
Material Properties	Flame-retardant, Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	White
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Shrink Ratio	3:1
Service Temperature Range ° F	-67 ° F - 275 ° F
Minimum Service Temperature ° F	-67 ° F
Maximum Service Temperature ° F	275 ° F
Application	Electrical Labeling, Wire and Cable Labeling
Printable Sides	Single-Side Printable
Sleeve Slits	No
Print Technology	Thermal Transfer
Printer Compatibility	BMP61, BMP71, M610, M611, M710
Recommended Ribbon	M61-R4310, M7-R6600
Wire Diameter Range	0.125 into 0.32 in
Wire Gauge Range	12 AWG - 4 AWG

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer www.P65Warnings.ca.gov

Product Details

Dimensions	0.645 in H x 1 in W
Roll Width	1 in
Sleeve Size	0.375 in Dia x 1 in W
Vertical Repeat	1 in
Recovered Diameter	0.125 in
Recovered Wall Thickness	0.025 in
Web Width	1.812 in
Diameter as Supplied	0.375 in
Material Number	B-342
Material	Heat-shrink Polyolefin
Material Properties	Flame-retardant, Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	White
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Shrink Ratio	3:1
Service Temperature Range ° F	-67 ° F - 275 ° F
Minimum Service Temperature ° F	-67 ° F
Maximum Service Temperature ° F	275 ° F
Application	Electrical Labeling, Wire and Cable Labeling
Printable Sides	Single-Side Printable
Sleeve Slits	No
Print Technology	Thermal Transfer
Printer Compatibility	BMP61, BMP71, M610, M611, M710
Recommended Ribbon	M61-R4310, M7-R6600
Wire Diameter Range	0.125 into 0.32 in
Wire Gauge Range	12 AWG - 4 AWG
