| Dimensions | 5.5 in H x 2 in W x 2.75 in D |
| Height | 5.5 in |
| Width | 2 in |
| Depth | 2.75 in |
| Cable Length | 6 ft |
| Weight | 0.24 lb |
| Color | Dark Gray |
| Application | Asset Tracking, General Identification |
| Connectivity | Cabled |
| Memory | 1 MB NOR Flash, 16MB RAM |

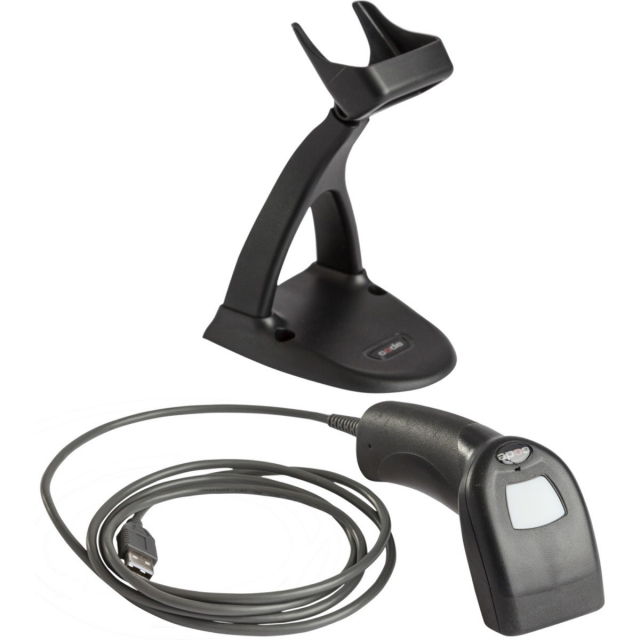

| Scanner Model | CR950 |
| Battery Type | No Battery |
| Decode Capability - 1D | BC412, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN |
| Rotational Tolerance | +/- 180° |
| Sensor | CMOS 1.2 megapixel monochrome |
| Field of View | 51° Horizontal by 39.4° Vertical |
| Focal Point | Approximately 130 mm |
| Optical Resolution | 1280 x 960 |
| Pitch | ± 60° (from front to back) |
| Skew | ± 60° from a plane parallel to the symbol (side-to-side) |
| Target Beam | Single blue targeting bar |
| Image Output Options | JPEG, PGM |
| Decode Capability - 1D Stacked | GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 |
| Decode Capability - 2D | Aztec Code, Data Matrix, Data Matrix Rectangular Ext'n, GoCode, Micro QR Code, QR Code, QR Model 1 |
| Decode Capability - Postal | Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-Net, UK Royal Mail, UPU ID-tags |
| Field Selection | Wide Field |
| Advanced-Data Editing | JavaScript |
| Symbol Contrast | 15% minimum reflectance difference |
| Ambient Light Immunity | Sunlight: Up to 9,000ft-candles/96,890 lux |
| Charging Station Communication Interfaces for Barcode Scanners | RS232, USB 2.0 (generic HID, HID keyboard, virtual com port) |
| Reader/Scanner Unit Communication | RS232, USB 2.0 (Generic HID, HID keyboard, Virtual COM port) |
| Device Drop Test & Durability | Resistant to 6-foot drops |
