Buy BlackBox ME660A-MSC, FlexPoint Fiber Converter

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

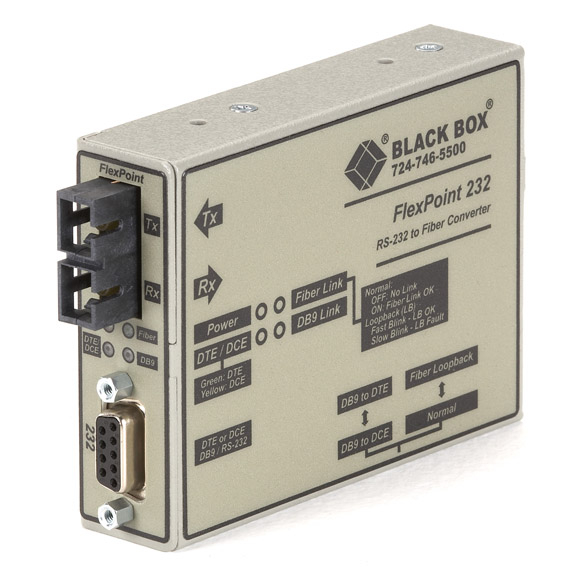

BlackBox, ME660A-MSC, FlexPoint RS-232 to Fiber Multimode Converter with SC Connectors

FlexPoint RS-232 to Fiber Converter, 850-nm Multimode, 2.5 km, SC. Extend RS-232 communications up to 2.5 kilometers on multimode fiber.

Quick Facts

Works as a standalone converter or as a hot-swappable chassis-mount converter in a FlexPoint Media Converter Chassis.
Works as serial RS-232 fiber converter and extender.
Supports distances to 2.5 kilometers (1.5 miles).

Further Details

Autosenses speeds up to 115.2 kbps.
Works as a standalone or a hot-swappable chassis-based extender.
Easy to install.
Includes a DC power supply. Or you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.
Features DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling.
Supports half- and full-duplex.
Remote loop capability for remote fiber testing and LEDs for status monitoring.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Declaration Due to recent government-imposed tariffs, all pricing is subject to change based on the manufacturer updates.

Technical Details

Flow Control	Software: X-ON, X-OFF; Hardware: RTS, CTS, DCD, DCR
Operation	Asynchronous, point-to-point
Speed (Maximum)	115.2 kbps
CE Approval	Yes
Connectors	RS-232 side: DB9 F; Fiber side: (1) pair of SC
Power	From the included DC power supply (9 VDC/500 mA or 5 VDC/750 mA); or from the FlexPoint Power Chassis
Size	1"H x 3"W x 4"D (2.5 x 7.6 x 10.2 cm)
Weight	0.4 lb. (0.2 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Flow Control	Software: X-ON, X-OFF; Hardware: RTS, CTS, DCD, DCR
Operation	Asynchronous, point-to-point
Speed (Maximum)	115.2 kbps
CE Approval	Yes
Connectors	RS-232 side: DB9 F; Fiber side: (1) pair of SC
Power	From the included DC power supply (9 VDC/500 mA or 5 VDC/750 mA); or from the FlexPoint Power Chassis
Size	1"H x 3"W x 4"D (2.5 x 7.6 x 10.2 cm)
Weight	0.4 lb. (0.2 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
