Set up point-to-point line-of-sight wireless connections up to 15 miles apart.
What's Included:
- (2) high-powered directional antennas, 40 Watts EIRP, 23 dBi. One is configured as an access point and one is configured as a subscriber unit.
- (2) Heavy-duty pole-mount brackets (Support 1-4" pole)
- (2) Gigabit Power-over-Ethernet injectors
- (2) 18-VDC power supplies
Quick Facts
- Features super-powerful 23 dBi directional antennas with 40 Watts EIRP for maximum distance and interference penetration.
Further Details
- Use rugged, high-speed extenders to connect fringe IP devices, such as security cameras.
- High-speed 300-Mbps transmissions handles HD video from cameras.
- Kit includes a dual-flat-panel high-gain directional antenna on both the access point and subscriber unit.
- AES 128-bit encryption secures data.
- Weatherproof NEMA enclosure can withstand the harshest conditions.
- Power over Ethernet means you don't have to install power lines.
- Built-in browser interface for easy re-configuation.
When you need secure, robust wireless data transmissions, these are the extenders to choose. Because they operate at 5-Ghz and 300-Mbps, they easily transmit high-definition video from security and surveillance cameras at the edge of your network.

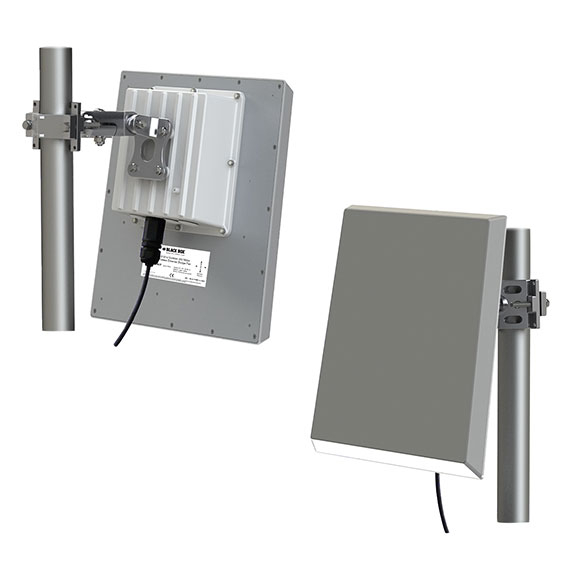

The kit includes (2) high-power, 23 dBi directional antennas with 40 watts EIRP. One is a subscriber unit and one is the access point. They are pre-configured to work with each other.
Maximum transmission power.
Use these extenders to set up high-powered, long-distance line-of-sight, point-to-point connections up to 15 miles (24 km) apart. Use these extenders in any number of wireless extension applications. Because of their very high data throughput, they can easily transmit high-definition video from security cameras. They are also useful for transmitting monitoring data in industrial settings, campus environments, medical complexes-anywhere you need robust and secure wireless transmission. You can even use them to power remote workstations. Your data is safe too. The extenders use AES 128-bit encryption.
The extenders utilize MIMO technology to achieve these very high data rates through a combination of spacial streams and high-level OFDM modulation.
Use anywhere.
These extenders come in a NEMA-rated, weatherproof aluminum enclosure so they can be used in the worst environments. A rubber gasket seals and protects the connector port from the weather.
PoE.
These extenders receive their power through the Ethernet cable via a 18-VDC power injector (included). You don't have to worry about running a power line or placing them near a power outlet. They are easy to use, too. A built-in browser interface provides easy reconfiguration and monitoring. Units are available to set up point-to-multipoint connections (LWE200A-AP, LWE200A-S). You can also use them in point-to-multipoint networks with distances up to five miles away. You can't mix and match the kit components with the separate access point and subscriber units because of the power differences.
