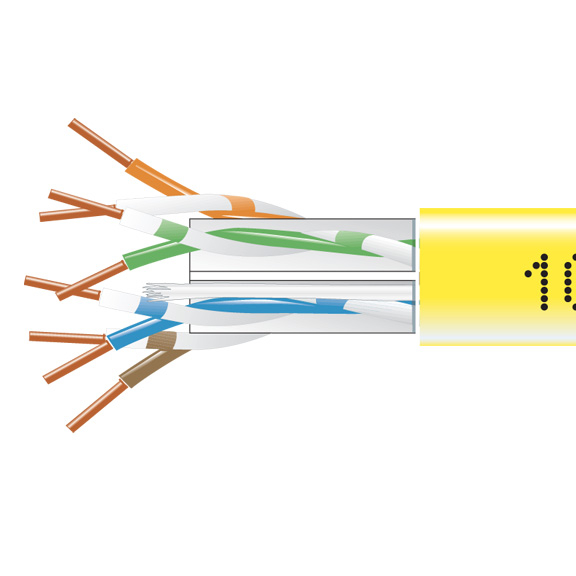

BlackBox, EYN873B-PB-1000, GigaTrue CAT6 550-MHz Plenum Jacketed Solid Bulk Cable (1000-ft.) - Yellow

GigaTrue CAT6 550-MHz Solid Bulk Cable - Plenum, Yellow, 1000-ft. ETL Verified and HDBaseT Recommended CAT6 cable.

Quick Facts

This cable is part of our ETL-Verfied GigaTrue CAT6 channel solution. Cable is tested four times a year.
Genuine! Thick, 23 AWG solid-copper conductors are ideal for top performance in long runs.
Safe! Meets fire codes and specifications so you can confidently use it in all your plenum runs.
Guaranteed for life!

Further Details

Get blazing speed. This cable is tested to 550 MHz.
Guaranteed to meet or exceed ANSI/TIA/EIA-568-C.2 Category 6 and ISO/IEC 11801 Class E requirements.
Ideal for Gigabit Ethernet, VoIP, digital video and audio, and other high-performance networking applications.
Cross-member design for strength and performance.
Features flame-retardant PVC, low-smoke jacket and FEP insulation.
Cable is marked in two-foot increments so you always know how much you have left in the pull-box.
UL 444 Listed.

This cable is the real deal: genuine and guaranteed for life. You can be confident that you'll get top network and safety performance in every run. This cable is part of our ETL Verified solution and is tested four times a year. It also meets all safety codes and regulations and is UL Listed. For more information on counterfeit cable, see Resources below.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

ACR (Minimum)	26.5 dB at 100 MHz; 2.8 dB at 300 MHz; NA @ 550 MHz
ACRF (Minimum)	27.8 dB at 100 MHz; 18.3 dB at 300 MHz; 13 dB at 550 MHz
Capacitance Unbalance (Pair-to-Ground) (Maximum)	330 pF/100 m
Characteristic Impedance	1-550 MHz; 100 ± ohms
Cross-Member	Plenum-rated polymer
Conductor	23 AWG, solid, bare copper
Delay Skew (Maximum)	30 ns/100 m
Insertion Loss (Maximum)	19.8 dB/100 m at 100 MHz; 36.4 dB/100 m at 300 MHz; 51.8 dB/100 at 550 MHz
Insulation	FEP
Jacket	Flame-retardant, low-smoke, PVC; CMP
Mutual Capacitance (Maximum)	56 pF/M
NEXT (Minimum)	46.3 dB at 100 MHz; 39.2 dB at 100 MHz; 35.2 dB at 550 MHz
Propagation Delay (Maximum)	536 nS/100 m at 550 MHz
PS-ACR (Minimum)	24.5 dB at 100 MHz; 0.8 dB at 300 MHz; NA at 550 MHz
PS-ACRF (Minimum)	24.8 dB at 100 MHz; 15.3 dB at 300 MHz; 10 dB at 550 MHz
PS-NEXT (Minimum)	44.3 dB at 100 MHz; 37.2 dB at 300 MHz; 37.2 dB at 550 MHz
Return Loss (Minimum)	20.1 dB at 100 MHz; 16.8 dB at 300 MHz; 14.9 dB at 550 MHz
RoHS	Yes
Standards	ANSI/TIA/EIA-568-C.2; ISO/IEC 11801 Class E; UL 444; ETL Verified
Dimensions	Diameter : 0.22" ± 0.10" (5.7 ± 0.3 mm); Length: 1000-ft. (304.8-m)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

ACR (Minimum)	26.5 dB at 100 MHz; 2.8 dB at 300 MHz; NA @ 550 MHz
ACRF (Minimum)	27.8 dB at 100 MHz; 18.3 dB at 300 MHz; 13 dB at 550 MHz
Capacitance Unbalance (Pair-to-Ground) (Maximum)	330 pF/100 m
Characteristic Impedance	1-550 MHz; 100 ± ohms
Cross-Member	Plenum-rated polymer
Conductor	23 AWG, solid, bare copper
Delay Skew (Maximum)	30 ns/100 m
Insertion Loss (Maximum)	19.8 dB/100 m at 100 MHz; 36.4 dB/100 m at 300 MHz; 51.8 dB/100 at 550 MHz
Insulation	FEP
Jacket	Flame-retardant, low-smoke, PVC; CMP
Mutual Capacitance (Maximum)	56 pF/M
NEXT (Minimum)	46.3 dB at 100 MHz; 39.2 dB at 100 MHz; 35.2 dB at 550 MHz
Propagation Delay (Maximum)	536 nS/100 m at 550 MHz
PS-ACR (Minimum)	24.5 dB at 100 MHz; 0.8 dB at 300 MHz; NA at 550 MHz
PS-ACRF (Minimum)	24.8 dB at 100 MHz; 15.3 dB at 300 MHz; 10 dB at 550 MHz
PS-NEXT (Minimum)	44.3 dB at 100 MHz; 37.2 dB at 300 MHz; 37.2 dB at 550 MHz
Return Loss (Minimum)	20.1 dB at 100 MHz; 16.8 dB at 300 MHz; 14.9 dB at 550 MHz
RoHS	Yes
Standards	ANSI/TIA/EIA-568-C.2; ISO/IEC 11801 Class E; UL 444; ETL Verified
Dimensions	Diameter : 0.22" ± 0.10" (5.7 ± 0.3 mm); Length: 1000-ft. (304.8-m)
