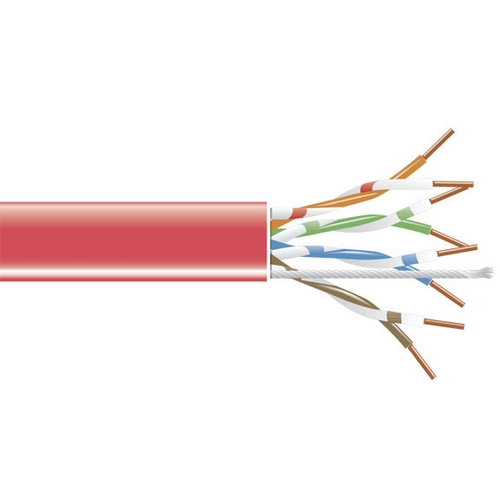

Black Box, EYN848A-PB-1000, GigaBase 350 1000-ft. CAT5e 350-MHz Plenum Solid Bulk Cable - Red

High-performance, ETL Verified cable that's easy to install.

Features:

This cable is part of our ETL Verified GigaBase® CAT5e channel solution.
Sweep tested and characterized to 350 MHz.
Extra headroom provides room for growth.
CAT5e compliance means dependable compatibility for future applications.
Ideal for voice, 10BASE-T, 4-/16-Mbps Token Ring, 100BASE-TX, 100-Mbps TP-PMD, T1, 155-Mbps ATM, 622-Mbps ATM, Gigabit Ethernet, and other high-speed applications.
Low attenuation and power-sum crosstalk characteristics over an extended frequency range.
Every master pull box is tested for electrical performance.
Longitudinal rip cord for easy jacket opening.
Cable is marked in two-foot increments so you always know how much you have left.
Guaranteed for life!

This bulk cable features the Accu-Pull Measuring System: Descending sequential foot markings let you know exactly how much is left on the spool. No more guesswork or measuring to see how much cable you have left.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

ACR (Minimum at 100 m)	16.3 dB at 100 MHz; 1.4 dB at 200 MHz
Attenuation (Minimum at 100 m)	22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz
Cable Type	4-pair UTP
Capacitance Unbalance (Maximum)	3300 pF/km (Pair to ground)
Characteristic Impedance	1-350 MHz: 100 ± 15 ohms
Conductor	24 AWG, solid, bare copper
Conductor Resistance	93.8 ohm/68° F (20° C) maximum
Delay Skew (Maximum)	1-350 MHz: 40 nS/100 m
EL-FEXT (Minimum at 100 m)	23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz
NEXT (Minimum at 100 m)	38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz
PS-ACR (Minimum at 100 m)	14.3 dB at 100 MHz
PS-ELFEXT (Minimum at 100 m)	20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz
PS-NEXT (Minimum at 100 m)	36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz
Return Loss	20.1 dB at 100 MHz
Velocity of Propagation (Minimum)	62.1% at 350 MHz

Product Details

ACR (Minimum at 100 m)	16.3 dB at 100 MHz; 1.4 dB at 200 MHz
Attenuation (Minimum at 100 m)	22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz
Cable Type	4-pair UTP
Capacitance Unbalance (Maximum)	3300 pF/km (Pair to ground)
Characteristic Impedance	1-350 MHz: 100 ± 15 ohms
Conductor	24 AWG, solid, bare copper
Conductor Resistance	93.8 ohm/68° F (20° C) maximum
Delay Skew (Maximum)	1-350 MHz: 40 nS/100 m
EL-FEXT (Minimum at 100 m)	23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz
NEXT (Minimum at 100 m)	38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz
PS-ACR (Minimum at 100 m)	14.3 dB at 100 MHz
PS-ELFEXT (Minimum at 100 m)	20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz
PS-NEXT (Minimum at 100 m)	36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz
Return Loss	20.1 dB at 100 MHz
Velocity of Propagation (Minimum)	62.1% at 350 MHz
