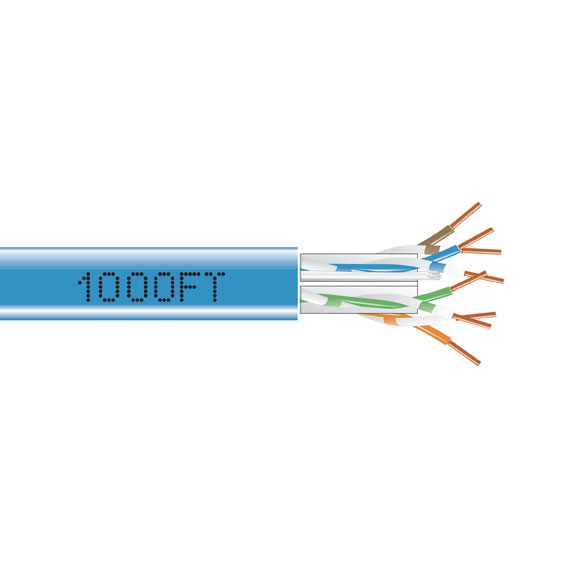

BlackBox C6ABC51-BL-1000 GigaTrue 650-MHz CAT6A UTP Cable (1000 ft.) - Blue

Color: Blue
  • Brand BlackBox
  • Part # C6ABC51-BL-1000
  • Model # GigaTrue
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Color:
Color: Blue

GigaTrue CAT6A Solid Bulk Cable (UTP), 23-AWG, Solid, 650-MHz, Plenum CMP, Blue, 1000-ft. (304.8-m). Move to 10-GbE with this ETL Verified 650-MHz cable.

Quick Facts

  • ETL Verified for component-level performance and as part of our CAT6A channel.
  • Guaranteed for life!

Further Details

  • Supports 10-GbE up to 328 feet (100 m).
  • Supports PoE and PoE+ for VoIP, WAP, and security applications.
  • Ideal for server-to-server/-storage/-switch, distributed backbone, and zone connections.

These cables work with:

  • GigaTrue 3 Patch Cables
  • GigaTrue CAT6A Staggered Patch Panel
  • GigaTrue CAT6A Jacks
  • GigaStation2 Wallplates
  • GigaStation2 Surface-Mount Housings
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
Approvals ETL Verified; ANSI/TIA-568-C.2 Category 6A;IEEE 802.3 an; UL 910; UL E196163-P; NFPA-282
Dimensions Diameter: 0.334"
Physical Specifications Conductor 23-AWG solid, bare copper
Insulation FEP
Pairs 4 Pairs
Cross Web (PVC) Plenum-rated polymer
Jacket Low-smoke, flame-retardant LSOH/PVC
Outer Diameter 0.334" (8.1 +/- 0.2 mm)
Electrical Performance ACRF 27.8 dB/100 m at 100 MHz; 19.8 dB/100 m at 250 MHz; 14.74 dB at 500 MHz
Capacitance Unbalance Pair Ground 330 pF/100 m max.
DCR Unbalance 4% max.
Delay Skew 45 ns/100 m at 650 MHz max.
Insertion Loss 19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz
NEXT 44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz
Propagation Delay 537.6 dB/100 m at 100 MHz; 536.28 dB/100 m at 250 MHz; 535.7 dB at 500 MHz
PS-AACRF 38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz
PS-ACRF 24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz
PS-ANEXT 62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz
PS-NEXT 42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz
Return Loss 20.11 dB/100 m at 100MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz
Product Details
Approvals ETL Verified; ANSI/TIA-568-C.2 Category 6A;IEEE 802.3 an; UL 910; UL E196163-P; NFPA-282
Dimensions Diameter: 0.334"
Physical Specifications Conductor 23-AWG solid, bare copper
Insulation FEP
Pairs 4 Pairs
Cross Web (PVC) Plenum-rated polymer
Jacket Low-smoke, flame-retardant LSOH/PVC
Outer Diameter 0.334" (8.1 +/- 0.2 mm)
Electrical Performance ACRF 27.8 dB/100 m at 100 MHz; 19.8 dB/100 m at 250 MHz; 14.74 dB at 500 MHz
Capacitance Unbalance Pair Ground 330 pF/100 m max.
DCR Unbalance 4% max.
Delay Skew 45 ns/100 m at 650 MHz max.
Insertion Loss 19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz
NEXT 44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz
Propagation Delay 537.6 dB/100 m at 100 MHz; 536.28 dB/100 m at 250 MHz; 535.7 dB at 500 MHz
PS-AACRF 38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz
PS-ACRF 24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz
PS-ANEXT 62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz
PS-NEXT 42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz
Return Loss 20.11 dB/100 m at 100MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz
Optional Accessories

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
