BlackBox C6ABC50-WH-1000 GigaTrue CAT6A 650-MHz Solid Bulk Cable (UTP), 23-AWG, Riser PVC CMR (1000-ft.) - White

Color: White
  • Brand BlackBox
  • Part # C6ABC50-WH-1000
  • Model # GigaTrue
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Color:
Color: White

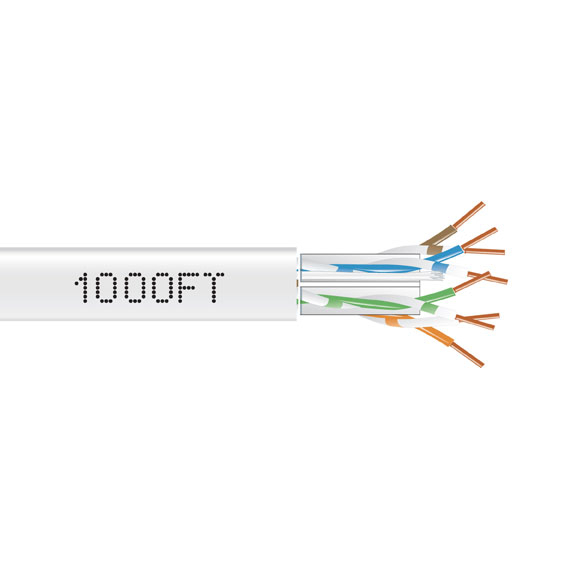

GigaTrue CAT6A Solid Bulk Cable (UTP), 23-AWG, Solid, 650-MHz, Riser PVC CMR, White, 1000-ft. (304.8-m). Move to 10-GbE with this ETL Verified 650-MHz cable.

Quick Facts

  • ETL Verified for component-level performance and as part of our CAT6A channel.
  • Guaranteed for life!

Further Details

  • Supports 10-GbE up to 328 feet (100 m).
  • Supports PoE and PoE+ for VoIP, WAP, and security applications.
  • Ideal for server-to-server/-storage/-switch, distributed backbone, and zone connections.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
ApprovalsETL Verified; ANSI/TIA-568-C.2 Category 6A;IEEE 802.3 an; UL 444, 1666; UL E196163-P
DimensionsDiameter: 0.318"
Physical Specifications
Conductor23-AWG solid, bare copper
InsulationHDPE
Pairs4
Cross Web (PVC)Flame-resistant PE
JacketFlame-resistant PVC, CMP
Outer Diameter0.334" (8.5 +/- 0.2 mm)
Electrical Performance
ACRF27.8 dB/100 m at 100 MHz; 19.84 dB/100 m at 250 MHz; 14.74 dB at 500 MHz
Capacitance Unbalance Pair Ground330 pF/100 m max.
DCR Unbalance4% max.
Delay Skew45 ns/100 m at 650 MHz max.
Insertion Loss19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz
NEXT44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz
Propagation Delay537.6 dB/100 m at 100 MHz; 536.28 dB/100 m at 250 MHz; 535.7 dB at 500 MHz
PS-AACRF38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz
PS-ACRF24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz
PS-ANEXT62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz
PS-NEXT42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz
Return Loss20.11 dB/100 m at 100 MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz
Product Details
ApprovalsETL Verified; ANSI/TIA-568-C.2 Category 6A;IEEE 802.3 an; UL 444, 1666; UL E196163-P
DimensionsDiameter: 0.318"
Physical Specifications
Conductor23-AWG solid, bare copper
InsulationHDPE
Pairs4
Cross Web (PVC)Flame-resistant PE
JacketFlame-resistant PVC, CMP
Outer Diameter0.334" (8.5 +/- 0.2 mm)
Electrical Performance
ACRF27.8 dB/100 m at 100 MHz; 19.84 dB/100 m at 250 MHz; 14.74 dB at 500 MHz
Capacitance Unbalance Pair Ground330 pF/100 m max.
DCR Unbalance4% max.
Delay Skew45 ns/100 m at 650 MHz max.
Insertion Loss19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz
NEXT44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz
Propagation Delay537.6 dB/100 m at 100 MHz; 536.28 dB/100 m at 250 MHz; 535.7 dB at 500 MHz
PS-AACRF38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz
PS-ACRF24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz
PS-ANEXT62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz
PS-NEXT42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz
Return Loss20.11 dB/100 m at 100 MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz
Optional Accessories

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
