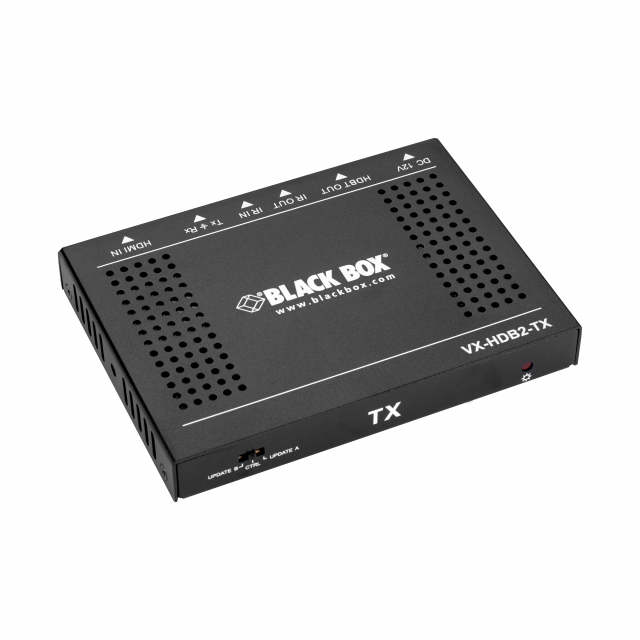

Black Box, VX-HDB2-TX, HDR HDBaseT Video Extender TX - 4K HDMI 2.0, 60Hz, 4:4:4 Chroma

Features:

Supports 4K/UHD/60 Hz/4:4:4
Supports HDMI 2.0 and HDCP 2.2 and is backwards-compatible to the previous versions
Maximum transmission distance is up to 131 feet (40 meters) for 4K x 2K and up to 229 feet (70 meters) for 1080p
Uses CEC, IR, and RS-232 passthrough for long-distance control
Includes bi-directional PoC for simplied wiring
Supports HDR
Includes a DIP switch for Control, Update A, and Update B

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

UL	2
Humidity	0 to 90% relative humidity
Operating Temperature	32 to 104° F (0 to 40° C)
Storage Temperature	+14 to +122° F (-10 to +50° C)
Bandwidth	18 Gbps
Resolution	UP to 4K x 2K at 60 Hz 4: 4:4
Dimensions	0.6" H x 4.5" W x 3.3" D (1.6 x 11.5 x 8.4 cm)
Weight	0.330 lb. (0.150 kg)
Power Consumption	14 W (max.)
Power Supply	Input: 100 to 240 VAC, 50/60 Hz, external power supply; Output: 12 VDC, 2 A
Input	HDMI IN
Output	HDBT OUT

UL	2
Humidity	0 to 90% relative humidity
Operating Temperature	32 to 104° F (0 to 40° C)
Storage Temperature	+14 to +122° F (-10 to +50° C)
Bandwidth	18 Gbps
Resolution	UP to 4K x 2K at 60 Hz 4: 4:4
Dimensions	0.6" H x 4.5" W x 3.3" D (1.6 x 11.5 x 8.4 cm)
Weight	0.330 lb. (0.150 kg)
Power Consumption	14 W (max.)
Power Supply	Input: 100 to 240 VAC, 50/60 Hz, external power supply; Output: 12 VDC, 2 A
Input	HDMI IN
Output	HDBT OUT

Note: Please read description carefully. Do not base your order on the picture presented.
