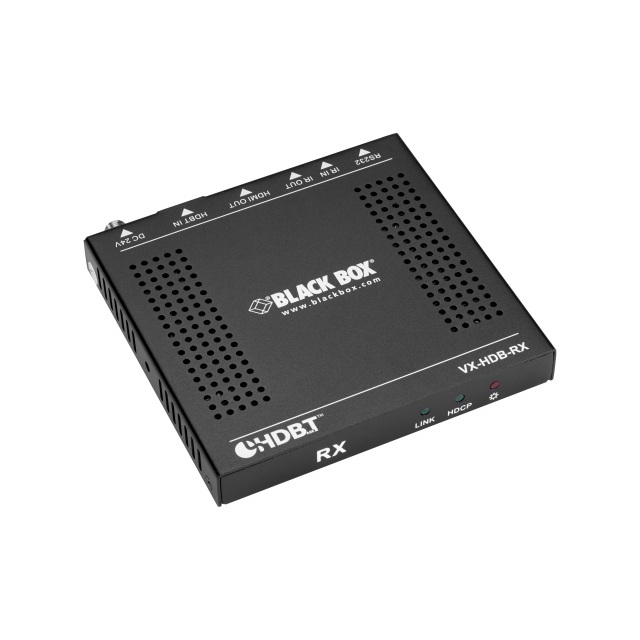

Black Box, VX-HDB-RX, HDBaseT HDMI Video Extender RX - 4K, 70m, PoH, IR, RS232

Features:

Supports full HD: Delivers a high-resolution image (1080p at 60 Hz at 48 b/pixels/3D/4K x 2K)
Maximum transmission distance is up to 131 feet (40 meters) for 4K x 2K and up to 229 feet (70 meters) for 1080p over a single CAT5e/CAT6a cable
High-bandwidth: 10.2 Gbps
HDTV compatible
HDMI 1.4 and HDCP 2.2 compliant
Supports bidirectional PoH
Uses HDBaseT technology
LED indicators show work status

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

UL	2
Humidity	10 to 90% relative humidity
Operating Temperature	32 to 122° F (0 to 50° C)
Audio	Digital audio, transmit through HDMI audio
Bandwidth	10.2 Gbps
Distance	1080p < or = 229 ft. (70 m); 4K x 2K < = 131 ft. (40 m)
Resolution	640 x 480 at 60 Hz, 4K x 2K at 30 Hz
Dimensions	0.6" H x 4.5" W x 4.3" D (1.6 x 11.5 x 10.9 cm)
Weight	0.432 lb. (.0.196 kg)
Power Consumption	14 W (max.)
Power Supply	nput: 100 to 240 VAC, 50/60 Hz, external power supply; Output: 24 VDC, 1.25 A
Video
Output	(1) HDMI, (1) IR, (1) RS-232

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

UL	2
Humidity	10 to 90% relative humidity
Operating Temperature	32 to 122° F (0 to 50° C)
Audio	Digital audio, transmit through HDMI audio
Bandwidth	10.2 Gbps
Distance	1080p < or = 229 ft. (70 m); 4K x 2K < = 131 ft. (40 m)
Resolution	640 x 480 at 60 Hz, 4K x 2K at 30 Hz
Dimensions	0.6" H x 4.5" W x 4.3" D (1.6 x 11.5 x 10.9 cm)
Weight	0.432 lb. (.0.196 kg)
Power Consumption	14 W (max.)
Power Supply	nput: 100 to 240 VAC, 50/60 Hz, external power supply; Output: 24 VDC, 1.25 A
Video
Output	(1) HDMI, (1) IR, (1) RS-232

Note: Please read description carefully. Do not base your order on the picture presented.
