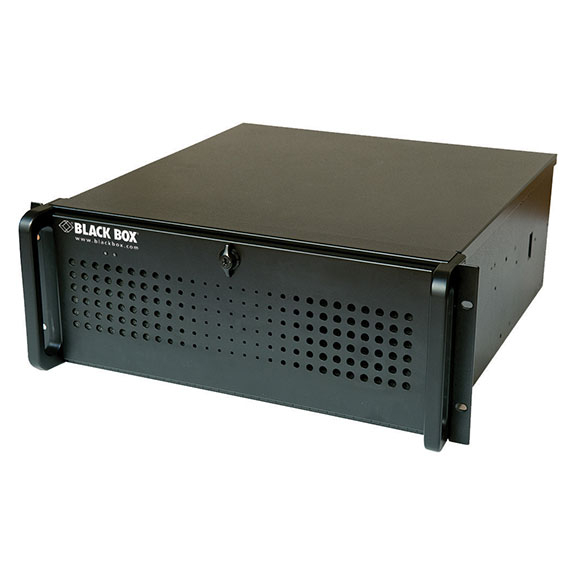

Black Box, VWP-FLEX-1182, 11Slt Video Wall Processor Chassis Intel i7 WIN10 800W RPSU 16GbRM

Features:

Mix live capture, ip streams, and local media in one application
Real-time, multi-user wall control
Provides the ability to run software applications on the wall control processor
Expandable with multiple chassis configuration
Supports hundreds of video inputs and up to 64 video outputs
Freely position any source anywhere on the video wall
True 4K 60 input and output support via displayport
Wide range of input cards for any video format: component, composite, SDI, HDMI, VGA, DP, DVI, IP (H.264)
Outputs include Displayport, DVI, andHDMI

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Storage (SSD)	(2) 240 GB; Upgrade option: (2) 480 GB SSD
Relative Humidity	5 to 90% noncondensing
Noise	48.6 dB (A) up to 67.9 dB (A), dependent on system config and ambient temp
Operating System	Windows 10 LTSB
USB	(2) USB 3.0 (back panel); (6) USB 2.0 (2 front, 2 back, 2 internal)
Clock Speed	3.6 GHz, 8 MB cache
Compliance	FCC, CE, RoHS, UL, CCC
Dimensions	6.9" H x 19" W x 19.6" D (17.5 x 48.2 x 50 cm)
Ethernet	Dual 10/100/1000BASE-T
Memory	16 GB as standard, 32 GB available on request
Motherboard	Portwell ROBO8113-Q170
On-board Graphics	HDMI and DisplayPor t for control screen
Operating Temperature	32 to 95° F (0 to 35° C)
Power	800 watt RPSU dual redundant
Processor	Latest generation Intel Core i7
RS-232	For control
Storage Temperature	-4 to +158° F (-20 to +70° C)
Weight	Product weight: 41.8 to 55 lb. (19 to 25 kg); Shipping weight: 66 to 72.6 lb. (30 to 33 kg)

Storage (SSD)	(2) 240 GB; Upgrade option: (2) 480 GB SSD
Relative Humidity	5 to 90% noncondensing
Noise	48.6 dB (A) up to 67.9 dB (A), dependent on system config and ambient temp
Operating System	Windows 10 LTSB
USB	(2) USB 3.0 (back panel); (6) USB 2.0 (2 front, 2 back, 2 internal)
Clock Speed	3.6 GHz, 8 MB cache
Compliance	FCC, CE, RoHS, UL, CCC
Dimensions	6.9" H x 19" W x 19.6" D (17.5 x 48.2 x 50 cm)
Ethernet	Dual 10/100/1000BASE-T
Memory	16 GB as standard, 32 GB available on request
Motherboard	Portwell ROBO8113-Q170
On-board Graphics	HDMI and DisplayPor t for control screen
Operating Temperature	32 to 95° F (0 to 35° C)
Power	800 watt RPSU dual redundant
Processor	Latest generation Intel Core i7
RS-232	For control
Storage Temperature	-4 to +158° F (-20 to +70° C)
Weight	Product weight: 41.8 to 55 lb. (19 to 25 kg); Shipping weight: 66 to 72.6 lb. (30 to 33 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
