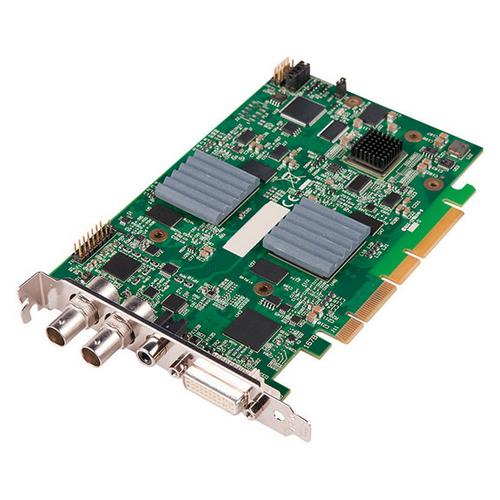

BlackBox, VCC-SDI-SD-HD-3, Radian Video Wall Processor Capture Card, HD, HD-SDI, SD

Both high-definition channels support HDMI, DVI, RGB, and analog component (YPbPr) via a DVI-I connector at resolutions up to 1080 p (1920 x 1080) at 60 Hz. They also support HDMI embedded audio capture and streaming.

All three video channels are captured simultaneously and triple buffered into an onboard storage are for tear-free video, alongside an audio stream that can be selected from one of the HDMI or analog audio ports. The data can then be processed and copied using DMA transfers to the host system for display, storage, or streaming.

Card provides full analog and digital support.
DVI-I channel one supports HDMI/DVI/RGB/YPbPr video capture at resolutions up to 1080p (1920 x 1080) at 60 Hz.
DVI-I channel supports HDMI embedded audio capture and streaming.
DVI-I channel has a low input to output capture latency.
Standard definition channel is input as composite video on a single RCA connector.
SD channel auto-detects PAL, NTSC, and SECAM formats.
SDI channel supports SD-SDI, HD-SDI, and 3G-SDI, including 2K digital film resolution modes.
Provides embedded HDMI and SDI audio capture, which can be synchronized with either video capture channel.
Four lane PCIe bus provides 1.6 GB/s total capture bandwidth.
Frame buffer

This product includes:

Capture card
Full-height bracket

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Analog Audio Capture	Balanced and unbalanced analog audio capture (through optional audio module)
Board	PCI Express x4 half-length, full-height card, 4.3” x 6.7” (11 x 17 cm)
Composite Video Capture	Sampling: CCIR601, auto detects PAL, NTSC, SECAM formats
Connectors	Main board: (2) DVI-I, (1) RCA female, (2) BNC
Dimensions	4.3” x 6.7” (11 x 17 cm), full-height
DMA Engine	Direct DMA to physical or virtual memory buffers with full scatter-gather support; DMA bandwidth: Up to 800 Mbps; 16 independent DMA streams: Any mix of HD and SD sources, color space, cropping, and scaling parameters
DVI Capture	Supports DVI 1.0 RGB 24-bit capture to 165 MHz; TMDS equalizer supports up to 20 m cables
Frame Buffer Memory	(2) x 256 MB
HDMI Capture	Supports HDMI 1.3 to 225 MHz, including deep color modes; Audio streaming source: HDMI audio; TMDS equalizer supports up to 20 m cables
Indicators	LEDs: (1) input, (1) loop through output
Operating System Support	Windows® XP, Windows Server 2003/2008/2012, Windows Vista, Windows 7/8, and Linux (not audio)
Operating Temperature	32 to 96° F (0 to 35° C);
Power	Current: 1A at 12V maximum; 1A at 3.3 V maximum; Thermal dissipation: 15.5 W
SDI Capture	SD-SDI: 480i/576i; HD-SDI: Up to 1080i; 3G-SDI: Up to 1080p; Digital cinema modes: 2K; Audio streaming source: SDI audio
Storage Temperature	-4 to +158° F (-20 to +70° C)
VGA/YpbPr Capture	Sampling: Triple ADCs up to 170 Msps, Full 4:4:4, 8 bits per color; Formats: 5-wire, 4-wire, or sync-on-green signal
Video Capture Memory	256 MB high-bandwidth frame buffer supports triple buffering of HD and SD video; Local storage of complex scatter-gather tables for DMA engine (eliminates read overhead)
Video Processing	Polyphase FIR scaling engine (7x5) for hardware downscaling and upscaling; Color space conversion allows captured data to be transferred in any format: RGB: 16-bit (5:5:5, 5:6:5), 24-bit (8:8:8), or 32-bit (8:8:8 alpha; YUV: 16-bit (4:2:2); Mono: 8-bit

Product Details

Analog Audio Capture	Balanced and unbalanced analog audio capture (through optional audio module)
Board	PCI Express x4 half-length, full-height card, 4.3” x 6.7” (11 x 17 cm)
Composite Video Capture	Sampling: CCIR601, auto detects PAL, NTSC, SECAM formats
Connectors	Main board: (2) DVI-I, (1) RCA female, (2) BNC
Dimensions	4.3” x 6.7” (11 x 17 cm), full-height
DMA Engine	Direct DMA to physical or virtual memory buffers with full scatter-gather support; DMA bandwidth: Up to 800 Mbps; 16 independent DMA streams: Any mix of HD and SD sources, color space, cropping, and scaling parameters
DVI Capture	Supports DVI 1.0 RGB 24-bit capture to 165 MHz; TMDS equalizer supports up to 20 m cables
Frame Buffer Memory	(2) x 256 MB
HDMI Capture	Supports HDMI 1.3 to 225 MHz, including deep color modes; Audio streaming source: HDMI audio; TMDS equalizer supports up to 20 m cables
Indicators	LEDs: (1) input, (1) loop through output
Operating System Support	Windows® XP, Windows Server 2003/2008/2012, Windows Vista, Windows 7/8, and Linux (not audio)
Operating Temperature	32 to 96° F (0 to 35° C);
Power	Current: 1A at 12V maximum; 1A at 3.3 V maximum; Thermal dissipation: 15.5 W
SDI Capture	SD-SDI: 480i/576i; HD-SDI: Up to 1080i; 3G-SDI: Up to 1080p; Digital cinema modes: 2K; Audio streaming source: SDI audio
Storage Temperature	-4 to +158° F (-20 to +70° C)
VGA/YpbPr Capture	Sampling: Triple ADCs up to 170 Msps, Full 4:4:4, 8 bits per color; Formats: 5-wire, 4-wire, or sync-on-green signal
Video Capture Memory	256 MB high-bandwidth frame buffer supports triple buffering of HD and SD video; Local storage of complex scatter-gather tables for DMA engine (eliminates read overhead)
Video Processing	Polyphase FIR scaling engine (7x5) for hardware downscaling and upscaling; Color space conversion allows captured data to be transferred in any format: RGB: 16-bit (5:5:5, 5:6:5), 24-bit (8:8:8), or 32-bit (8:8:8 alpha; YUV: 16-bit (4:2:2); Mono: 8-bit

Note

Note: Please read description carefully. Do not base your order on the picture presented.
