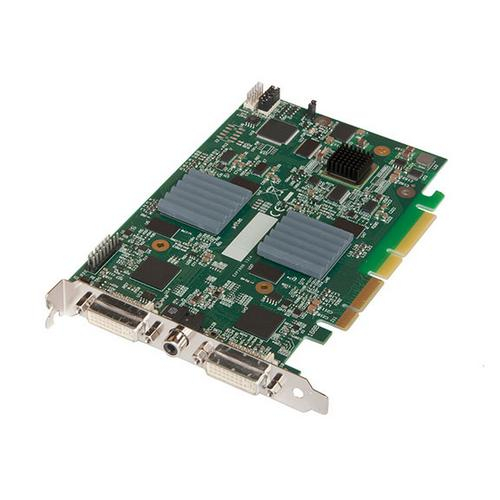

BlackBox VCC-SD-HD-3 Radian Video Wall Card

  • Brand BlackBox
  • Part # VCC-SD-HD-3
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

BlackBox, VCC-SD-HD-3, Radian Video Wall Processor Capture Card, 2 HD, 1 SD

Both high-definition channels support HDMI, DVI, RGB, and analog component (YPbPr) via a DVI-I connector at resolutions up to 1080p (1920 x 1080) at 60 Hz They also support HDMI embedded audio capture and streaming.

All three video channels are captured simultaneously and triple buffered into an onboard storage are for tear-free video, alongside an audio stream that can be selected from one of the HDMI or analog audio ports. The data can then be processed and copied using DMA transfers to the host system for display, storage, or streaming.

  • DVI-I channel one supports HDMI/DVI/RGB/YPbPr video capture.
  • DVI-I channel two has embedded audio capture and streaming.
  • The SD/composite channel supports and auto-detects PAL, NTSC, and SECAM up to 720 x 576 @ 16-bit color.
  • Four lane PCIe bus provides 1.6 GB/s total capture bandwidth.
  • Direct DMA to graphics memory of third party graphics cards.
  • Low input to output capture latency.

This product includes:

  • Capture card
  • Audio module
  • Full-height bracket (for both cards)
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Audio CaptureStereo Line-In/Stereo balanced inputs with programmable gain (±12 dB); 16-bit sampling at 44.1/48/96 kHz; Analog stereo line-out for direct pass-through of selected input at up to 64 kHz sampling, sourced from analog input or HDMI channel; Analog stereo line-out for direct pass-through of selected input at up to 64 kHz sampling, sourced from analog input or HDMI channel
BoardPCI Express x4 low-profile card
Composite Video CaptureSampling: CCIR601, auto detects PAL, NTSC, SECAM formats
ConnectorsMain board: (2) DVI-I, (1) RCA female
Dimensions2.71" x 6.59" (6.89 x 16.76 cm), full-height, full-height
DMA BandwidthUp to 800 Mbps; 16 independent DMA streams: Any mix of HD and SD sources, color space, cropping, and scaling parameters
DMA EngineDirect DMA to physical or virtual memory buffers with full scatter-gather support
DVI CaptureSupports DVI 1.0 RGB 24-bit capture to 165 MHz; TMDS equalizer supports up to 20 m cables
HDMI CaptureSupports HDMI 1.3 to 225 MHz, including deep color modes; Audio streaming source: HDMI audio; TMDS equalizer supports up to 20 m cables
Operating System SupportWindows® XP, Windows Server 2003/2008/2012, Windows Vista, Windows 7/8, and Linux
Operating Temperature32 to 96° F (0 to 35° C);
PowerCurrent (maximum): 1A at 12V; 1A at 3.3 V; Thermal dissipation: 15.5 W
Storage Temperature-4 to +158° F (-20 to +70° C)
VGA/YpbPr CaptureSampling: Triple ADCs up to 170 Msps, Full 4:4:4, 8 bits per color; Formats: 5-wire, 4-wire, or sync-on-green signal
Video Capture Memory256 MB high-bandwidth frame buffer supports triple buffering of HD and SD video; Local storage of complex scatter-gather tables for DMA engine (eliminates read overhead)
Video ProcessingPolyphase FIR scaling engine (7x5) for hardware downscaling and upscaling; Color space conversion allows captured data to be transferred in any format: RGB: 16-bit (5:5:5, 5:6:5), 24-bit (8:8:8), or 32-bit (8:8:8) alpha; YUV: 16-bit (4:2:2); Mono: 8-bit
Product Details
Audio CaptureStereo Line-In/Stereo balanced inputs with programmable gain (±12 dB); 16-bit sampling at 44.1/48/96 kHz; Analog stereo line-out for direct pass-through of selected input at up to 64 kHz sampling, sourced from analog input or HDMI channel; Analog stereo line-out for direct pass-through of selected input at up to 64 kHz sampling, sourced from analog input or HDMI channel
BoardPCI Express x4 low-profile card
Composite Video CaptureSampling: CCIR601, auto detects PAL, NTSC, SECAM formats
ConnectorsMain board: (2) DVI-I, (1) RCA female
Dimensions2.71" x 6.59" (6.89 x 16.76 cm), full-height, full-height
DMA BandwidthUp to 800 Mbps; 16 independent DMA streams: Any mix of HD and SD sources, color space, cropping, and scaling parameters
DMA EngineDirect DMA to physical or virtual memory buffers with full scatter-gather support
DVI CaptureSupports DVI 1.0 RGB 24-bit capture to 165 MHz; TMDS equalizer supports up to 20 m cables
HDMI CaptureSupports HDMI 1.3 to 225 MHz, including deep color modes; Audio streaming source: HDMI audio; TMDS equalizer supports up to 20 m cables
Operating System SupportWindows® XP, Windows Server 2003/2008/2012, Windows Vista, Windows 7/8, and Linux
Operating Temperature32 to 96° F (0 to 35° C);
PowerCurrent (maximum): 1A at 12V; 1A at 3.3 V; Thermal dissipation: 15.5 W
Storage Temperature-4 to +158° F (-20 to +70° C)
VGA/YpbPr CaptureSampling: Triple ADCs up to 170 Msps, Full 4:4:4, 8 bits per color; Formats: 5-wire, 4-wire, or sync-on-green signal
Video Capture Memory256 MB high-bandwidth frame buffer supports triple buffering of HD and SD video; Local storage of complex scatter-gather tables for DMA engine (eliminates read overhead)
Video ProcessingPolyphase FIR scaling engine (7x5) for hardware downscaling and upscaling; Color space conversion allows captured data to be transferred in any format: RGB: 16-bit (5:5:5, 5:6:5), 24-bit (8:8:8), or 32-bit (8:8:8) alpha; YUV: 16-bit (4:2:2); Mono: 8-bit
Note

Note: Please read description carefully. Do not base your order on the picture presented.
