BlackBox, UVX-DP-TP-100M, Video Extender - DisplayPort, RS-232, Audio, USB 2.0, 4K

This product includes:

Features:

With USB 2.0 passthrough, you can extend keyboard and mouse or other peripheral signals.
Use HDBaseT technology for the highest quality and reliability.
Use 48 V PoH (Power over HDBaseT) to power received unit from the transmitter.
Transmit 330 feet (100 meters) over CAT6A/CAT7 cables.
HDCP 2.2 compliant and supports EDID transmission.
Easy, plug-and-play setup. No software or drivers to install.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

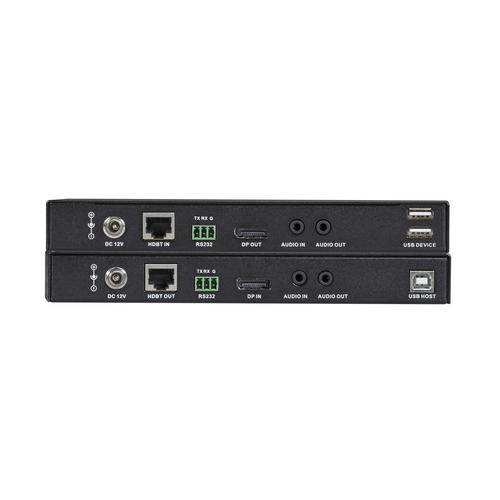

Connectors	Transmitter: (1) 12-VDC barrel; (1) HDBaseT OUT, (1) 3-pin Phoenix connector, (1) DisplayPort IN, (1) Audio IN, (1) Audio OUT, (1) USB Type B; Receiver: (1) 12-VDC barrel, (1) HDBaseT IN, (1) 3-pin Phoenix connector, (1) DisplayPort OUT, (1) Audio IN, (1) Audio OUT, (2) USB Type A
Data Rate	10.2 Gbps maximum
Dimensions	Each unit: 0.99"H x 7.91"W x 3.95"D (2.51 x 20.09 x 10.03 cm)
Distance	CAT6A/CAT7: Up to 328 feet (100 m) at 3840 x 2160 at 30 Hz, 4:2:0, or 1080p at 60 Hz output resolution; CAT5e/CAT6: Up to 224 feet (70 m) at 3840 x 2160 at 30 Hz; Up to 328 feet (100 m) at 1080p at 30 Hz resolution
Operating Temperature	32 to 113° F (0 to 45° C);
Resolution	Input: Up to 3840 x 2160 at 30 Hz (UHS); Output: UHD30: 3840 x 2160 at 30 Hz; FHD: 1920 x 1080 at 60 Hz; HD: 1280 x 720 at 60 Hz; WUXGA: 1920 x 1200 at 60 Hz; WXGA: 1280 x 800 at 60 Hz
Storage Temperature	-4 to 158° F (-20 to 70° C)

Connectors	Transmitter: (1) 12-VDC barrel; (1) HDBaseT OUT, (1) 3-pin Phoenix connector, (1) DisplayPort IN, (1) Audio IN, (1) Audio OUT, (1) USB Type B; Receiver: (1) 12-VDC barrel, (1) HDBaseT IN, (1) 3-pin Phoenix connector, (1) DisplayPort OUT, (1) Audio IN, (1) Audio OUT, (2) USB Type A
Data Rate	10.2 Gbps maximum
Dimensions	Each unit: 0.99"H x 7.91"W x 3.95"D (2.51 x 20.09 x 10.03 cm)
Distance	CAT6A/CAT7: Up to 328 feet (100 m) at 3840 x 2160 at 30 Hz, 4:2:0, or 1080p at 60 Hz output resolution; CAT5e/CAT6: Up to 224 feet (70 m) at 3840 x 2160 at 30 Hz; Up to 328 feet (100 m) at 1080p at 30 Hz resolution
Operating Temperature	32 to 113° F (0 to 45° C);
Resolution	Input: Up to 3840 x 2160 at 30 Hz (UHS); Output: UHD30: 3840 x 2160 at 30 Hz; FHD: 1920 x 1080 at 60 Hz; HD: 1280 x 720 at 60 Hz; WUXGA: 1920 x 1200 at 60 Hz; WXGA: 1280 x 800 at 60 Hz
Storage Temperature	-4 to 158° F (-20 to 70° C)

Note: Please read description carefully. Do not base your order on the picture presented.
