BlackBox, PI046A, Async RS-232 to Parallel Converter, DB9 to DB25, Interface

Features:

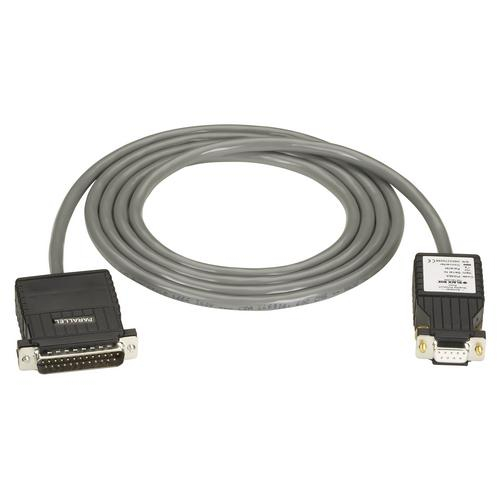

Built-in 6-foot (1.8-m) cable eliminates the need for extension cables. It includes a DB9 female socket for serial ports and a DB25 male plug on the other end.
Runs at speeds up to 38.4 kbps.
Makes the DB9 serial port on your PC compatible with parallel devices.
Connect your PC to a printer-even with something plugged into its parallel port.
Converts serial to parallel or parallel to serial.
Automatic serial/parallel mode detection.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

CE Approval	Yes
Connectors	DB9 F DCE, DB25 M
Controls	External DIP switches: Speed, flow control, parity, word length
Data Format	Even, odd, or no parity; 7 or 8 data bits, 1 stop bit
Flow Control	Hardware or X-ON/X-OFF
Indicators	LED
Interface	Serial: Asynchronous; Parallel: Centronics®
Power	From the RS-232 interface
Speed	300 bps to 38.4 kbps, switch selectable

CE Approval	Yes
Connectors	DB9 F DCE, DB25 M
Controls	External DIP switches: Speed, flow control, parity, word length
Data Format	Even, odd, or no parity; 7 or 8 data bits, 1 stop bit
Flow Control	Hardware or X-ON/X-OFF
Indicators	LED
Interface	Serial: Asynchronous; Parallel: Centronics®
Power	From the RS-232 interface
Speed	300 bps to 38.4 kbps, switch selectable

Note: Please read description carefully. Do not base your order on the picture presented.
