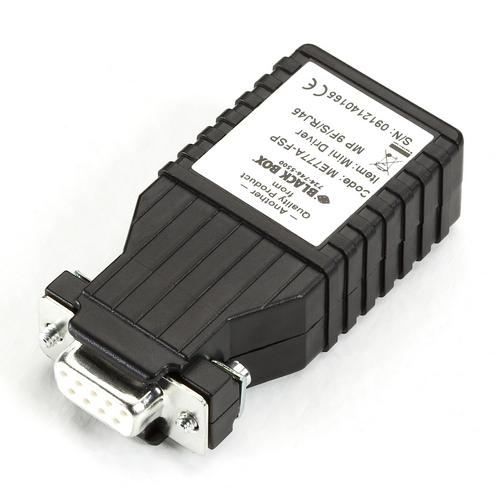

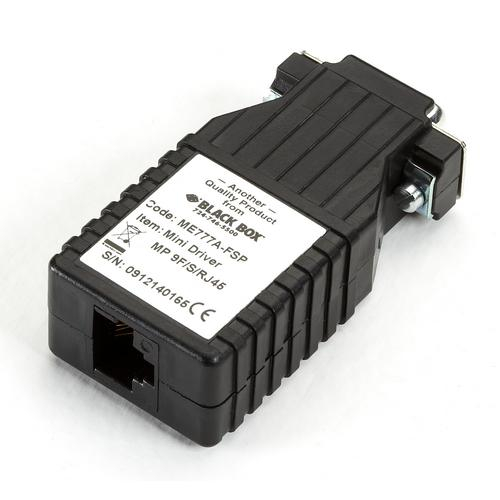

BlackBox, ME777A-FSP, Mini Driver Async RS-232 Extender Over CATx, DB9 Male, RJ-45

Features:

Supports data rates up to 115.2 kbps
Handles up to 50 drops without compromising signal quality
Works with 2- or 4-wire twisted-pair cable.
Support point-to-point or multipoint
Supports distances up to 5 miles (8 km) at 1200 bps.
Operates half- or full-duplex, async, multipoint or point-to-point over two or four wires.
Built-in surge protection-up to 600 watts per wire!
Handles up to 50 multipoint drops.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

CE Approval	Yes
Connectors	ME775A-MSP: DB9 M, terminal block; ME775A-FSP: DB9 F, terminal block; ME776A-FSP: DB9 F, RJ-11; ME777A-MSP: DB9 M, RJ-45; ME777A-FSP: DB9 F, RJ-45
Distance	5 mi. (8 km) at 1200 bps (24 AWG wire); 1.4 mi. (2.2 km) at 115.2 kbps
Interface	RS-232
Operation	2- or 4-wire, half- or full-duplex
Power	6 to 12 VDC from Pins 3, 4, 7, or 9
Protocol	Asynchronous

CE Approval	Yes
Connectors	ME775A-MSP: DB9 M, terminal block; ME775A-FSP: DB9 F, terminal block; ME776A-FSP: DB9 F, RJ-11; ME777A-MSP: DB9 M, RJ-45; ME777A-FSP: DB9 F, RJ-45
Distance	5 mi. (8 km) at 1200 bps (24 AWG wire); 1.4 mi. (2.2 km) at 115.2 kbps
Interface	RS-232
Operation	2- or 4-wire, half- or full-duplex
Power	6 to 12 VDC from Pins 3, 4, 7, or 9
Protocol	Asynchronous

Note: Please read description carefully. Do not base your order on the picture presented.
