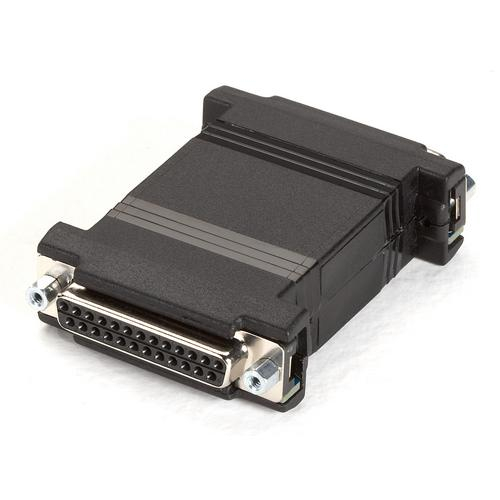

BlackBox, ME001A-R2, Async/Sync RS-232 Repeater, DB25 Male to DB25 Female
If your printer is too far away, you may find the transmission from your PC is getting too weak to be recognized by the device on the other side of the line. That’s when you should install the BLACK BOX® RS-232 Serial Line Booster. The booster regenerates the signal at the correct RS-232 level. You get strong transmissions and the convenience of putting the printer where you want it.
The RS-232 Serial Line Booster effectively doubles the range of RS-232 communications by actively receiving and retransmitting the 12 most common signals of the serial RS-232 interface.
Normally, RS-232 communications are limited to 50 feet (15.2 m). But with the RS-232 Line Booster, your data can travel on up to 100 or even 150 feet (30.4 or 45.7 m) of cable if environmental conditions are similar over the entire cable and the booster is in the center of the run. The booster also halves the signal-to-noise ratio, and it’s data and data-format transparent. It can be powered from the interface (Pins 9 and 10) or from its wallmount transformer
Features:
- Regenerates weak RS-232 signals.
- Cuts the signal-to-noise ratio in half
- Data and data-format transparent.
- Boosts serial transmission up to 100 feet (30.4 m) of cable, provided conditions are similar over the entire run and the booster is in the center.
