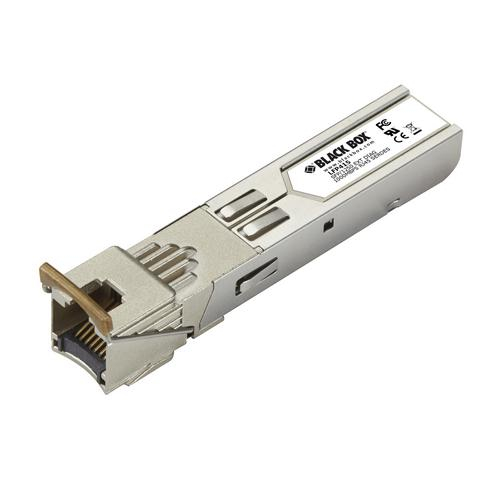

BlackBox, LFP415, SFP - 1250-Mbps, Extended Diagnostics, 1000BASE-T, SerDes Interface, RJ-45

Features:

This SFP copper transceiver enables you to adapt an SFP slot to a copper RJ45 interface.
The deivce has a SerDes interface for 1000Mbps Ethernet.
Supports an extended operating temperature of -40 to 176F (-40 to +85C).
Autosensing for 1000-Mbps Ethernet.
Link length up to 100 meters over CAT5 or better UTP cable.
Throughput up to 1.25 Gbps.
Reports basic link characteristics such as SFP type, length of fiber link, wavelength, and bit rate.
Great for industrial use. Offers an operating temperature range of -40° to +185° F (-40° to +85° C).
Hot-pluggable interface enables you to change SFPs on the fly when your network requirements change.
Auto detects MDI/MDI-X.
Complies with SFP Multi-Source Agreements standards (MSA)
Comes with LOS (Loss of Signal) Detection.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Altitude	5905 ft. (1800 m)
Approvals	CE, UL®, RoHS2, TUV, FCC
Dimensions	0.59" W x 0.69" H x 2.75" D (1.5 x 1.75 x 7.0)
Environmental	Operating Humiditiy: 85% non-condensing;
Input Power Watts	1W
Input Voltage	3.3 VDC (3.1 V minumum to 3.5 V maximum) 330 mA
Interface	Mac: SDMII
Operating Temperature	-40° to +185° F (-40° to +85° C);
Power	SFP Cage
Speed	10/100/1000-Mbps
Weight	.05 lbs (.023 kg)

General
Altitude	5905 ft. (1800 m)
Approvals	CE, UL®, RoHS2, TUV, FCC
Dimensions	0.59" W x 0.69" H x 2.75" D (1.5 x 1.75 x 7.0)
Environmental	Operating Humiditiy: 85% non-condensing;
Input Power Watts	1W
Input Voltage	3.3 VDC (3.1 V minumum to 3.5 V maximum) 330 mA
Interface	Mac: SDMII
Operating Temperature	-40° to +185° F (-40° to +85° C);
Power	SFP Cage
Speed	10/100/1000-Mbps
Weight	.05 lbs (.023 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
