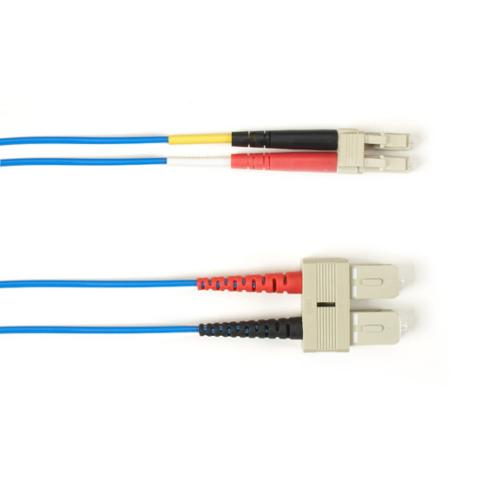

Black Box, FOLZH62004MSCLCBL, OM1 62.5/125 Multimode Fiber Optic Patch Cable, LSZH, SC-LC, Blue, 4 m

Features:

Color code fiber networks for different applications, departments, and security levels.
Take your network to 10-GbE.
Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Diameter	Core: OM1 62.5-µm; Cladding: 125-µm
Jacket	Low Smoke Zero Halogen (LSZH)
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 220 MHz/km at 850 nm; Legacy performance EMB: 200 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 300 m at 850 nm; 1 Gbps over 550 nm at 1300 nm
Listings	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10; Type A1b fiber; TIA 492AAAA-A

Diameter	Core: OM1 62.5-µm; Cladding: 125-µm
Jacket	Low Smoke Zero Halogen (LSZH)
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 220 MHz/km at 850 nm; Legacy performance EMB: 200 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 300 m at 850 nm; 1 Gbps over 550 nm at 1300 nm
Listings	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10; Type A1b fiber; TIA 492AAAA-A

Note: Please read description carefully. Do not base your order on the picture presented.
