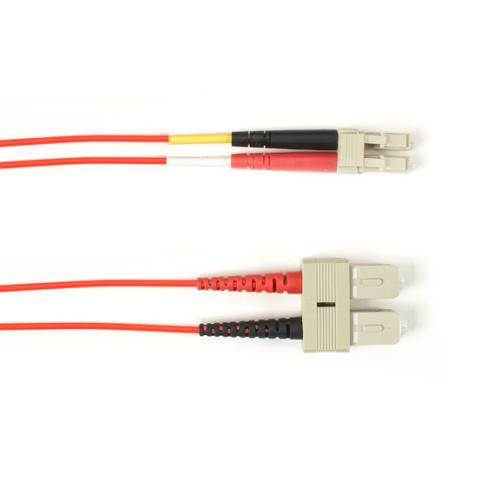

BlackBox, FOLZH50-030M-SCLC-RD, DuplexFiber Optic PatchCable, OM2, SC-LC, Red, 98.4-ft.

Features:

Color code fiber networks for different applications, departments, and security levels.
Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion.
Well suited for using in aircraft, ships, and construction areas.
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Construction
Diameter	Core: OM2 50-µm; Cladding: 125-µm
Jacket	Low Smoke Zero Halogen (LSZH)
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.6 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 510 MHz/km at 850 nm; Legacy performance EMB: 500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 600 m at 850 nm
Standards
Listings	ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10; Type A1a.1 fiberfiber; TIA 492AAAB

Construction
Diameter	Core: OM2 50-µm; Cladding: 125-µm
Jacket	Low Smoke Zero Halogen (LSZH)
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.6 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 510 MHz/km at 850 nm; Legacy performance EMB: 500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 600 m at 850 nm
Standards
Listings	ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10; Type A1a.1 fiberfiber; TIA 492AAAB

Note: Please read description carefully. Do not base your order on the picture presented.
