Buy BlackBox FOCMRSM003MSCLCWH, OS2 9/125 Fiber Patch Cable, SC-LC, 3 m

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Black Box, FOCMRSM003MSCLCWH, OS2 9/125 Singlemode Fiber Optic Patch Cable, OFNR PVC, SC-LC, White, 3 m

Features:

High performance at data rates up to 1 Gbps at 850 nm.
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.
Industry-leading CPC coatings for superior micro-bend and environmental performance.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Diameter	Core: OS2 9-µm; Cladding: 125-µm
Jacket	OFNR
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Attenuation	=0.35 dB/km at 1310 nm; =0.22 dB/km at 1550 nm
Listings	ITU-T G.652 (Categories A, B, C, D); IEC 60793-2-50; TIA-492CAAA; Telcordia GR-20 CORE

Diameter	Core: OS2 9-µm; Cladding: 125-µm
Jacket	OFNR
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Attenuation	=0.35 dB/km at 1310 nm; =0.22 dB/km at 1550 nm
Listings	ITU-T G.652 (Categories A, B, C, D); IEC 60793-2-50; TIA-492CAAA; Telcordia GR-20 CORE

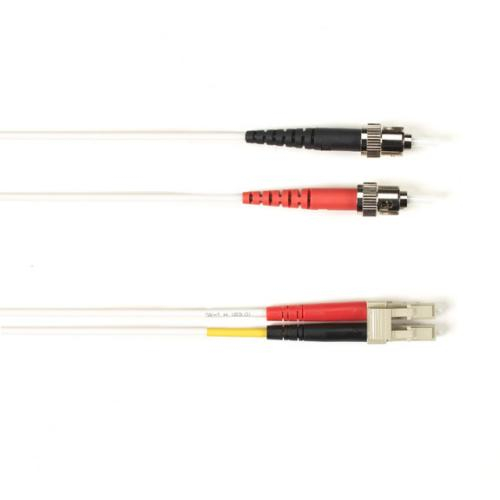

Note: Please read description carefully. Do not base your order on the picture presented.
