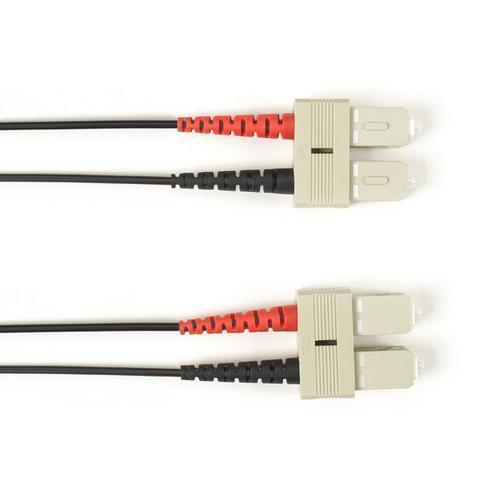

BlackBox, FOCMR62-015M-SCSC-BK, OM1 62.5-Micron Multimode Fiber Optic Patch Cable - OFNR PVC, SC-SC, Black, 15-m (49.2-ft.)

Features:

Get high performance at data rates up to 1 Gbps at 850 nm.
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.
Industry-leading CPC® coatings for superior microbend and environmental performance.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Construction
Diameter	Core: OM1 62.5-µm; Cladding: 125-µm
Jacket	OFNR
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 220 MHz/km at 850 nm; Legacy performance EMB: 200 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 300 m at 850 nm; 1 Gbps over 550 nm at 1300 nm
Standards
Listings	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10; Type A1b fiber; TIA 492AAAA-A

Construction
Diameter	Core: OM1 62.5-µm; Cladding: 125-µm
Jacket	OFNR
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 220 MHz/km at 850 nm; Legacy performance EMB: 200 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 300 m at 850 nm; 1 Gbps over 550 nm at 1300 nm
Standards
Listings	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10; Type A1b fiber; TIA 492AAAA-A

Note: Please read description carefully. Do not base your order on the picture presented.
