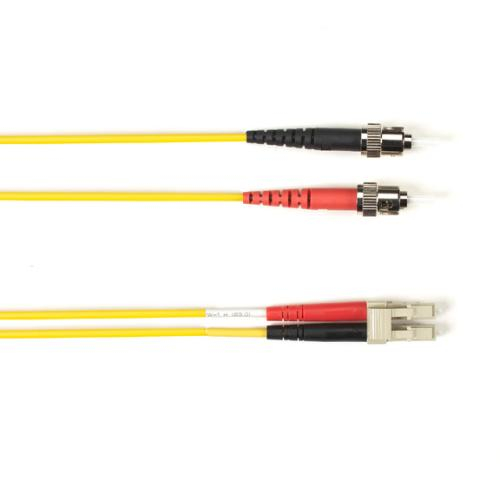

BlackBox, FOCMR10002MSTLCYL, Colored Fiber OM3 50/125 Multimode Fiber Optic Patch Cable - OFNR PVC, ST-LC, Yellow, 6.5 Ft

Features:

Match Black Box fiber cable to company, team, or school colors for that special networking application.
Take network to 10-GbE.
Choose from 12 different colors
Select from 13 lengths ranging from 1 to 30 meters.
Guaranteed for life!
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.
Industry-leading CPC coatings for superior micro-bend and environmental performance.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Diameter	Core: OM3 laser-optimized 50-µm; Cladding: 125-µm
Jacket	OFNR
Temperature	Operating Temperature: -76 to 185° F (-60 to 85° C)
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 2000 MHz/km at 850 nm; Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 1000 m at 850 nm; 10 Gbps over 300 m at 1300 nm
Listings	ISO/IEC 11801: Type OM3 fiber; IEC 60793-2-10; Type A1a.2 fiber; TIA 492AAAC

Diameter	Core: OM3 laser-optimized 50-µm; Cladding: 125-µm
Jacket	OFNR
Temperature	Operating Temperature: -76 to 185° F (-60 to 85° C)
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 2000 MHz/km at 850 nm; Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 1000 m at 850 nm; 10 Gbps over 300 m at 1300 nm
Listings	ISO/IEC 11801: Type OM3 fiber; IEC 60793-2-10; Type A1a.2 fiber; TIA 492AAAC
