Options and Related Products

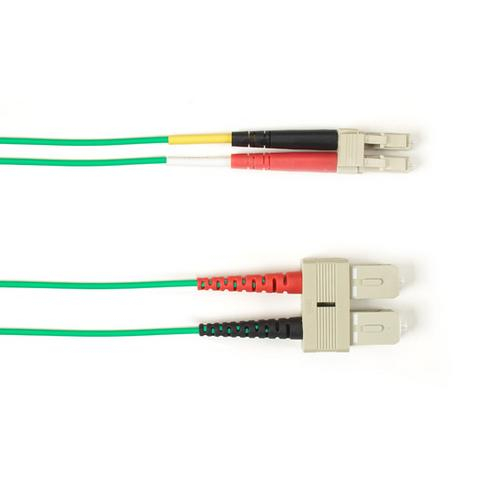

BlackBox, FOCMR10-003M-SCLC-GN, Duplex FOP Cable, 50um, OM3, OFNR, SC-LC, Green, 3m

Features

Match Black Box fiber cable to your company, team, or school colors for that special networking application.
Take your network to 10-GbE.
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.
Industry-leading CPC coatings for superior microbend and environmental performance.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Construction
Diameter	Core: OM3 laser-optimized 50-µm; Cladding: 125-µm
Jacket	OFNR
Environmental
Temperature	Operating Temperature: -76 to 185° F (-60 to 85° C)
Performance
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 2000 MHz/km at 850 nm; Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 1000 m at 850 nm; 10 Gbps over 300 m at 1300 nm
Standards
Listings	ISO/IEC 11801: Type OM3 fiber; IEC 60793-2-10; Type A1a.2 fiber; TIA 492AAAC

Construction
Diameter	Core: OM3 laser-optimized 50-µm; Cladding: 125-µm
Jacket	OFNR
Environmental
Temperature	Operating Temperature: -76 to 185° F (-60 to 85° C)
Performance
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 2000 MHz/km at 850 nm; Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 1000 m at 850 nm; 10 Gbps over 300 m at 1300 nm
Standards
Listings	ISO/IEC 11801: Type OM3 fiber; IEC 60793-2-10; Type A1a.2 fiber; TIA 492AAAC

Note: Please read description carefully. Do not base your order on the picture presented.
