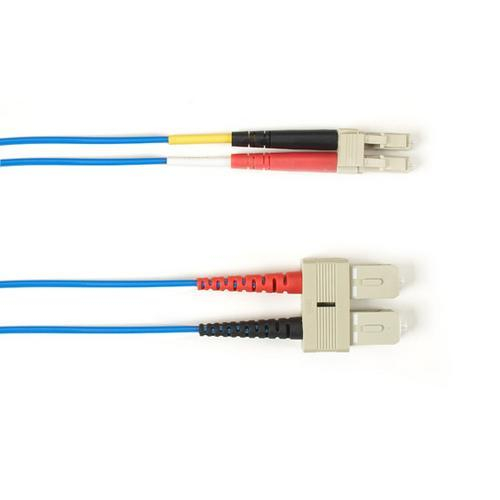

FOCMPSM-008M-SCLC-BL - Duplex FOP Cable, 8M, SC-LC, Blue, OS2

Details:

Get high performance at data rates up to 1 Gbps at 850 nm.
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.
Industry-leading CPC® coatings for superior microbend and environmental performance.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Construction
Diameter	Core: OS2 9-µm; Cladding: 125-µm
Jacket	OFNP
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=0.35 dB/km at 1310 nm; =0.22 dB/km at 1550 nm
Standards
Listings	ITU-T G.652 (Categories A, B, C, D); IEC 60793-2-50; TIA-492CAAA; Telcordia GR-20 CORE

Construction
Diameter	Core: OS2 9-µm; Cladding: 125-µm
Jacket	OFNP
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=0.35 dB/km at 1310 nm; =0.22 dB/km at 1550 nm
Standards
Listings	ITU-T G.652 (Categories A, B, C, D); IEC 60793-2-50; TIA-492CAAA; Telcordia GR-20 CORE

Note: Please read description carefully. Do not base your order on the picture presented.
