Buy BlackBox FOCMP62-001M-SCMT-AQ, Duplex Patch Cable

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

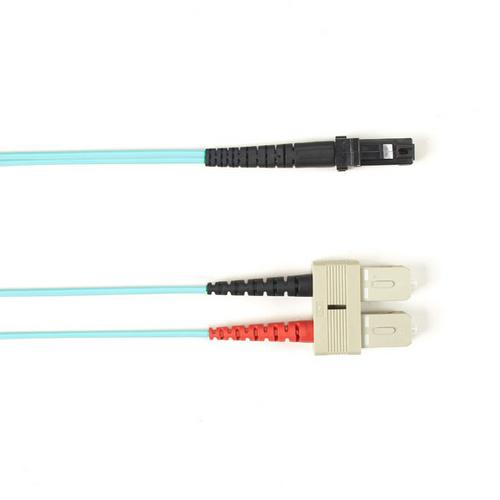

BlackBox, FOCMP62-001M-SCMT-AQ, 1 Meter Duplex Fiber Optic Patch Cable, Multimode, 62.5 Micron, OM2, OFNP, Plenum, SCMT, Aqua, 1M (3.2-ft.)

Features:

Match Black Box fiber cable to your company, team, or school colors for that special networking application.
Choose from four cores: 62.5-, 50-, 10-GbE laser-optimized 50-micron multimode, and 9-micron single-mode cable.
Get the connectors you want: ST, SC, LC, and MT-RJ in 10 different combinations.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Diameter	Core: OM1 62.5-µm; Cladding: 125-µm
Jacket	OFNR
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 220 MHz/km at 850 nm; Legacy performance EMB: 200 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 300 m at 850 nm; 1 Gbps over 550 nm at 1300 nm
Standards
Listings	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10; Type A1b fiber; TIA 492AAAA-A

Diameter	Core: OM1 62.5-µm; Cladding: 125-µm
Jacket	OFNR
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.9 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 220 MHz/km at 850 nm; Legacy performance EMB: 200 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 300 m at 850 nm; 1 Gbps over 550 nm at 1300 nm
Standards
Listings	ISO/IEC 11801: Type OM1 fiber; IEC 60793-2-10; Type A1b fiber; TIA 492AAAA-A

Note: Please read description carefully. Do not base your order on the picture presented.
