Buy BlackBox FOCMP50-030M-SCLC-BK, Fiber Optic Cable

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

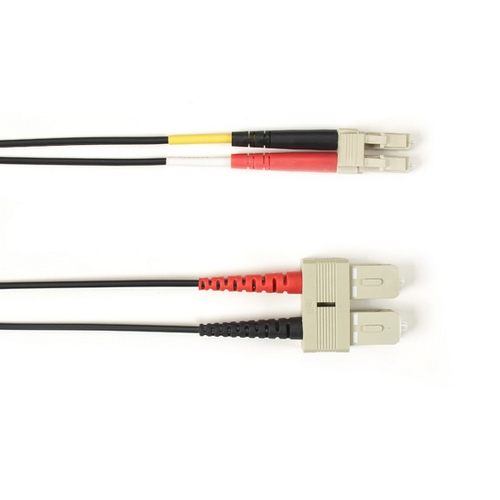

Black Box, FOCMP50-030M-SCLC-BK, 98.4-ft Multimode Fiber Optic Cable w/ SC-LC - Black

Quick Facts

Match Black Box fiber cable to your company, team, or school colors for that special networking application.
Guaranteed for life!

Further Details

Get high performance at data rates up to 1 Gbps at 850 nm.
Higher data aggregation in the backbone, riser, and high-speed parallel interconnects (HSPIs).
Full compatibility with a broad range of laser-based and legacy protocols and applications.
Industry-leading CPC coatings for superior microbend and environmental performance.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Attenuation	850 nm: = 2.4 dB/km; 1300 nm: = 0.7 dB/km
Bandwidth	Intermediate performance EMB: 850 nm: 510 MHz/km; Legacy performance EMB: 850 nm: 500 MHz/km; 1300 nm: 500 MHz/km
Cladding Diameter	125 µm
Core Diameter	50 µm
Operating Temperature	14 to 158° F (-10 to +70° C)
Optimized Data Rate	1 Gbps over 600 m
Standards	ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10: Type A1a.1 fiber; TIA/EIA: 492AAAB

Attenuation	850 nm: = 2.4 dB/km; 1300 nm: = 0.7 dB/km
Bandwidth	Intermediate performance EMB: 850 nm: 510 MHz/km; Legacy performance EMB: 850 nm: 500 MHz/km; 1300 nm: 500 MHz/km
Cladding Diameter	125 µm
Core Diameter	50 µm
Operating Temperature	14 to 158° F (-10 to +70° C)
Optimized Data Rate	1 Gbps over 600 m
Standards	ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10: Type A1a.1 fiber; TIA/EIA: 492AAAB

Note: Please read description carefully. Do not base your order on the picture presented.
