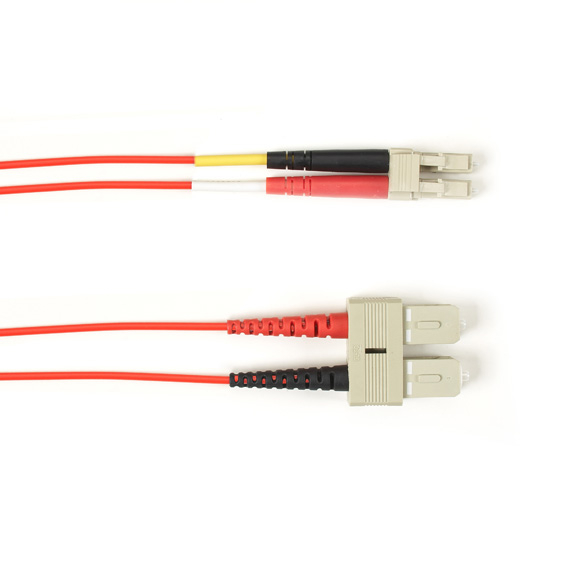

BlackBox, FOCMP50-003M-SCLC-RD, SC-LC, 50-Micron, Multimode Cable, Red, 9.8-ft

Features:

Match Black Box fiber cable to your company, team, or school colors for that special networking application.
Choose from four cores: 62.5-, 50-, 10-GbE laser-optimized 50-micron multimode, and 9-micron single-mode cable.
Get the connectors you want: ST, SC, LC, and MT-RJ in 10 different combinations.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Construction
Diameter	Core: OM2 50-µm; Cladding: 125-µm
Jacket	OFNP
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.6 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 510 MHz/km at 850 nm; Legacy performance EMB: 500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 600 m at 850 nm
Standards
Listings	ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10: Type A1a.1 fiber; TIA 492AAAB

Construction
Diameter	Core: OM2 50-µm; Cladding: 125-µm
Jacket	OFNP
Environmental
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Performance
Attenuation	=2.6 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 510 MHz/km at 850 nm; Legacy performance EMB: 500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 600 m at 850 nm
Standards
Listings	ISO/IEC 11801: Type OM2 fiber; IEC 60793-2-10: Type A1a.1 fiber; TIA 492AAAB

Note: Please read description carefully. Do not base your order on the picture presented.
