BlackBox FOBC45INM1OR12F-450 OM1 62.5/125 Fiber Optic Cable, 450 Ft

  • Brand BlackBox
  • Part # FOBC45INM1OR12F-450
  • Model # OM1 62.5/125
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

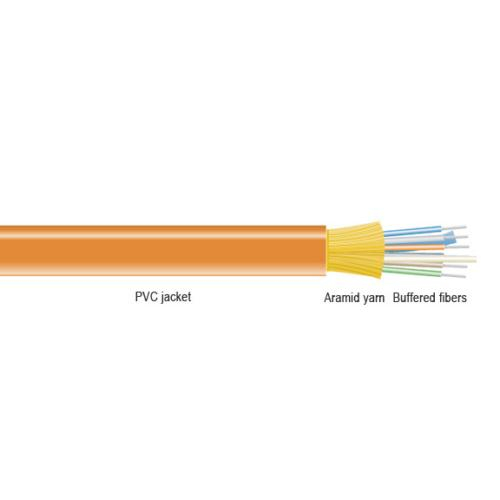

Black Box, FOBC45INM1OR12F-450, OM1 62.5/125 Multimode Bulk Fiber Optic Distribution Cable, Indoor, Tight-Buffered, OFNR PVC, 12-Strand, Orange, 450 Ft

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
ListingsTIA-568-C.3; RoHS; Telcordia GR-409-CORE; UL 1666 Riser Rated (OFNR)
JacketOFNR PVC
Cladding125 microns
Core Size62.5 micron
Diameter (Nominal)0.17" (4.4 mm)
TemperatureOperating/Installation Temperature: -4 to 157° F (-20 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
ListingsOFNR
Cable TypeTight buffered
ConstructionDistribution style
Fiber Count12 fiber
Glass TypeOM1 Multimode
SpaceIndoor
ColorOrange
Weight13 lbs/1000 ft. (20 kg/km)
Attenuation3.5 dB/km at 850 nm; 1.2 dB/km at 1300 nm
DistanceGigabit Ethernet: 300 m at 850 nm; 550 m at 1300 nm; 10-GbE: 32 m at 850 nm
Bend RadiusInstallation: 3.5" (8.3 cm); Operating: 2.5" (5.5 cm)
Overfill Launch Bandwidth (Min.)200 MHz/km at 850 nm; 600 dB/km at 1300 nm
TensionInstalled: 100 lbs. (440 N); Long-term: 30 lbs. (132 N)
Product Details
ListingsTIA-568-C.3; RoHS; Telcordia GR-409-CORE; UL 1666 Riser Rated (OFNR)
JacketOFNR PVC
Cladding125 microns
Core Size62.5 micron
Diameter (Nominal)0.17" (4.4 mm)
TemperatureOperating/Installation Temperature: -4 to 157° F (-20 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
ListingsOFNR
Cable TypeTight buffered
ConstructionDistribution style
Fiber Count12 fiber
Glass TypeOM1 Multimode
SpaceIndoor
ColorOrange
Weight13 lbs/1000 ft. (20 kg/km)
Attenuation3.5 dB/km at 850 nm; 1.2 dB/km at 1300 nm
DistanceGigabit Ethernet: 300 m at 850 nm; 550 m at 1300 nm; 10-GbE: 32 m at 850 nm
Bend RadiusInstallation: 3.5" (8.3 cm); Operating: 2.5" (5.5 cm)
Overfill Launch Bandwidth (Min.)200 MHz/km at 850 nm; 600 dB/km at 1300 nm
TensionInstalled: 100 lbs. (440 N); Long-term: 30 lbs. (132 N)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
