BlackBox FOBC45-ZPSM-YL-02F-2350 OS2 9/125 Zipcord Cable, 2350 ft

Cable Length: 2350 ft
  • Brand BlackBox
  • Part # FOBC45-ZPSM-YL-02F-2350
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Cable Length:
Cable Length: 2350 ft

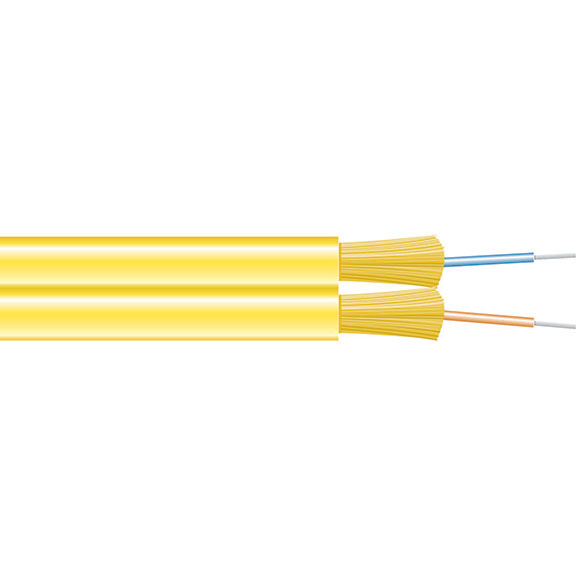

BlackBox, FOBC45-ZPSM-YL-02F-2350, OS2-9/125 Singlemode Bulk Fiber Optic Zipcord Cable - Indoor, OFNR PVC, 2-Strand, Yellow, Custom Length, 2350 ft

Features

  • Save money and reduce waste by ordering cable in the exact length you need.
  • Cable is in stock.
  • No long lead times.
  • No minimum lengths.
  • Connections are easy to terminate with this flexible, two-fiber cable.
  • Use for connections from the closet to the wall outlet and from the wall outlet to the desktop.
  • Use with either LED or laser light sources.
  • Bend-insensitive, 10-mm fiber.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Approvals
ListingsTIA 568-C.3; RoHS; ITU G.657.A SR-15e Bend Insensitive; IEC 60793-2-50; NFPA 262 Rated (OFNP)
Construction
JacketOFNR
Dimensions
Cladding125 microns
Core Size9 microns
Diameter (Nominal)0.08" x 0.16" (2.0 x 4.0 mm)
Environmental
TemperatureOperating/Installation Temperature: -4 to 158° F (-20 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
Flame Test
ListingsOFNR
General
Cable TypeTight buffered
ConstructionZipcord
Fiber Count2 fiber
Glass TypeOS2 Single-mode
SpaceIndoor
Weight7 lbs/1000 ft. (10 kg/km)
Performance
AttenuationMaximum: 0.5 dB/km at 1300; 0.5 dB/km at 1550 nm
DistanceGigabit Ethernet: 5000 m at 1300; 10-Gigabit Ethernet: 10,000 m at 1300 nm
Physical
Bend RadiusInstallation: 2.0" (5.0 cm); Long-term: 1.2" (3.0 cm)
Overfill Launch Bandwidth (Min.)NA
TensionInstalled: 22 lbs. (100 N); Long-term: 7 lbs. (30 N)
Product Details
Approvals
ListingsTIA 568-C.3; RoHS; ITU G.657.A SR-15e Bend Insensitive; IEC 60793-2-50; NFPA 262 Rated (OFNP)
Construction
JacketOFNR
Dimensions
Cladding125 microns
Core Size9 microns
Diameter (Nominal)0.08" x 0.16" (2.0 x 4.0 mm)
Environmental
TemperatureOperating/Installation Temperature: -4 to 158° F (-20 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
Flame Test
ListingsOFNR
General
Cable TypeTight buffered
ConstructionZipcord
Fiber Count2 fiber
Glass TypeOS2 Single-mode
SpaceIndoor
Weight7 lbs/1000 ft. (10 kg/km)
Performance
AttenuationMaximum: 0.5 dB/km at 1300; 0.5 dB/km at 1550 nm
DistanceGigabit Ethernet: 5000 m at 1300; 10-Gigabit Ethernet: 10,000 m at 1300 nm
Physical
Bend RadiusInstallation: 2.0" (5.0 cm); Long-term: 1.2" (3.0 cm)
Overfill Launch Bandwidth (Min.)NA
TensionInstalled: 22 lbs. (100 N); Long-term: 7 lbs. (30 N)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
