BlackBox FOBC35INAM1OR06F-75 OM1 62.5/125 Fiber Optic Cable, 75 Ft

  • Brand BlackBox
  • Part # FOBC35INAM1OR06F-75
  • Model # OM1 62.5/125
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

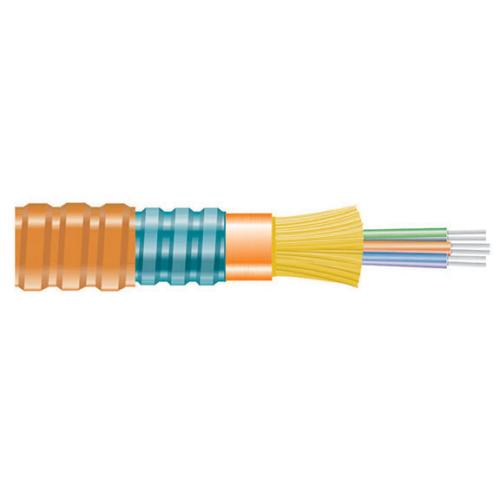

Black Box, FOBC35INAM1OR06F-75, OM1 62.5/125 Multimode Bulk Fiber Optic Distribution Cable, Indoor, Interlocking Armored, Tight-Buffered, OFCP Plenum, 6-Strand, Orange, 75 Ft

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
ListingsTIA 568-C.3; GR-409-CORE; RoHS
JacketOFCP Plenum
Cladding125 microns
Core Size62.5 microns
Diameter (Nominal)0.46" (11.8 mm)
TemperatureOperating/Installation Temperature: 32 to 158° F (0 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
ListingsOFCP
Cable TypeTight buffered
ConstructionDistribution style
Fiber Count6 fiber
Glass TypeOM1 Multimode
SpaceIndoor Interlocking
ColorOrange
Weight82 lbs/1000 ft. (122 kg/km)
AttenuationMaximum: 3.5 dB/km at 850 nm; 1.2 dB/km at 1300 nm
DistanceGigabit Ethernet: 300 m at 850 nm; 550 m at 1300 nm; 10-Gigabit Ethernet: 32 m at 850 nm
Bend RadiusInstallation: 7.0" (17.7 cm); Long-term: 4.8" (12.2 cm)
Overfill Launch Bandwidth (Min.)200 MHz/km at 850 nm; 600 MHz/km at 1300 nm
TensionInstalled: 100 lbs. (440 N); Long-term: 30 lbs. (132 N)
Product Details
ListingsTIA 568-C.3; GR-409-CORE; RoHS
JacketOFCP Plenum
Cladding125 microns
Core Size62.5 microns
Diameter (Nominal)0.46" (11.8 mm)
TemperatureOperating/Installation Temperature: 32 to 158° F (0 to 70° C); Storage Temperature: -40 to 167° F (-40 to 75° C)
ListingsOFCP
Cable TypeTight buffered
ConstructionDistribution style
Fiber Count6 fiber
Glass TypeOM1 Multimode
SpaceIndoor Interlocking
ColorOrange
Weight82 lbs/1000 ft. (122 kg/km)
AttenuationMaximum: 3.5 dB/km at 850 nm; 1.2 dB/km at 1300 nm
DistanceGigabit Ethernet: 300 m at 850 nm; 550 m at 1300 nm; 10-Gigabit Ethernet: 32 m at 850 nm
Bend RadiusInstallation: 7.0" (17.7 cm); Long-term: 4.8" (12.2 cm)
Overfill Launch Bandwidth (Min.)200 MHz/km at 850 nm; 600 MHz/km at 1300 nm
TensionInstalled: 100 lbs. (440 N); Long-term: 30 lbs. (132 N)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
