Buy BlackBox EYN916MS-0050, EYN9 Series CAT6 Backbone Cable, White, 50-ft

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

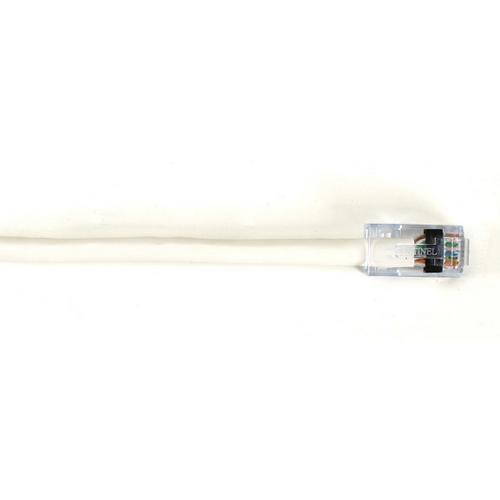

BlackBox, EYN916MS-0050, EYN9 Series CAT6 550-MHz Solid-Conductor Backbone Cable - Unshielded, Plenum, Basic Connector, White, 50-ft

Features:

Solid, dependable CAT6 backbone cable for new and existing networks.
Meets or exceeds CAT6 specifications.
Use in 1000BASE-T, 100BASE-T, and other high-speed, high-bandwidth applications.
Cable construction: straight-pinned, 4-pair, T568B.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

ACR	9.7 dB/100 m at 250 MHz
Cable Outside Diameter (Nominal)	0.225" (.57 cm) without plugs
Conductor	Plenum (CMP): 23 AWG, solid, bare copper
Delay Skew (Maximum)	25 ns/100 m (328 ft.)
ELFEXT	22.0 dB/100 m (328 ft.) at 250 MHz
Impedance	1000 ± 15%
Jacket	Plenum (CMP): RoHS compliant, plenum-rated thermoplastic
Mutual Capacitance (Nominal)	46pF/m
NEXT	52.0 dB/100M at 250 MHz
PS-ACR	7.7 dB/100 m at 250 MHz
PS-ELFEXT	20.0 dB/100 m at 250 MHz
PS-NEXT	40.3 dB/100 m at 250 MHz
Return Loss	29.0 dB/100 m at 250 MHz
Velocity of Propagation	68%

ACR	9.7 dB/100 m at 250 MHz
Cable Outside Diameter (Nominal)	0.225" (.57 cm) without plugs
Conductor	Plenum (CMP): 23 AWG, solid, bare copper
Delay Skew (Maximum)	25 ns/100 m (328 ft.)
ELFEXT	22.0 dB/100 m (328 ft.) at 250 MHz
Impedance	1000 ± 15%
Jacket	Plenum (CMP): RoHS compliant, plenum-rated thermoplastic
Mutual Capacitance (Nominal)	46pF/m
NEXT	52.0 dB/100M at 250 MHz
PS-ACR	7.7 dB/100 m at 250 MHz
PS-ELFEXT	20.0 dB/100 m at 250 MHz
PS-NEXT	40.3 dB/100 m at 250 MHz
Return Loss	29.0 dB/100 m at 250 MHz
Velocity of Propagation	68%

Note: Please read description carefully. Do not base your order on the picture presented.
